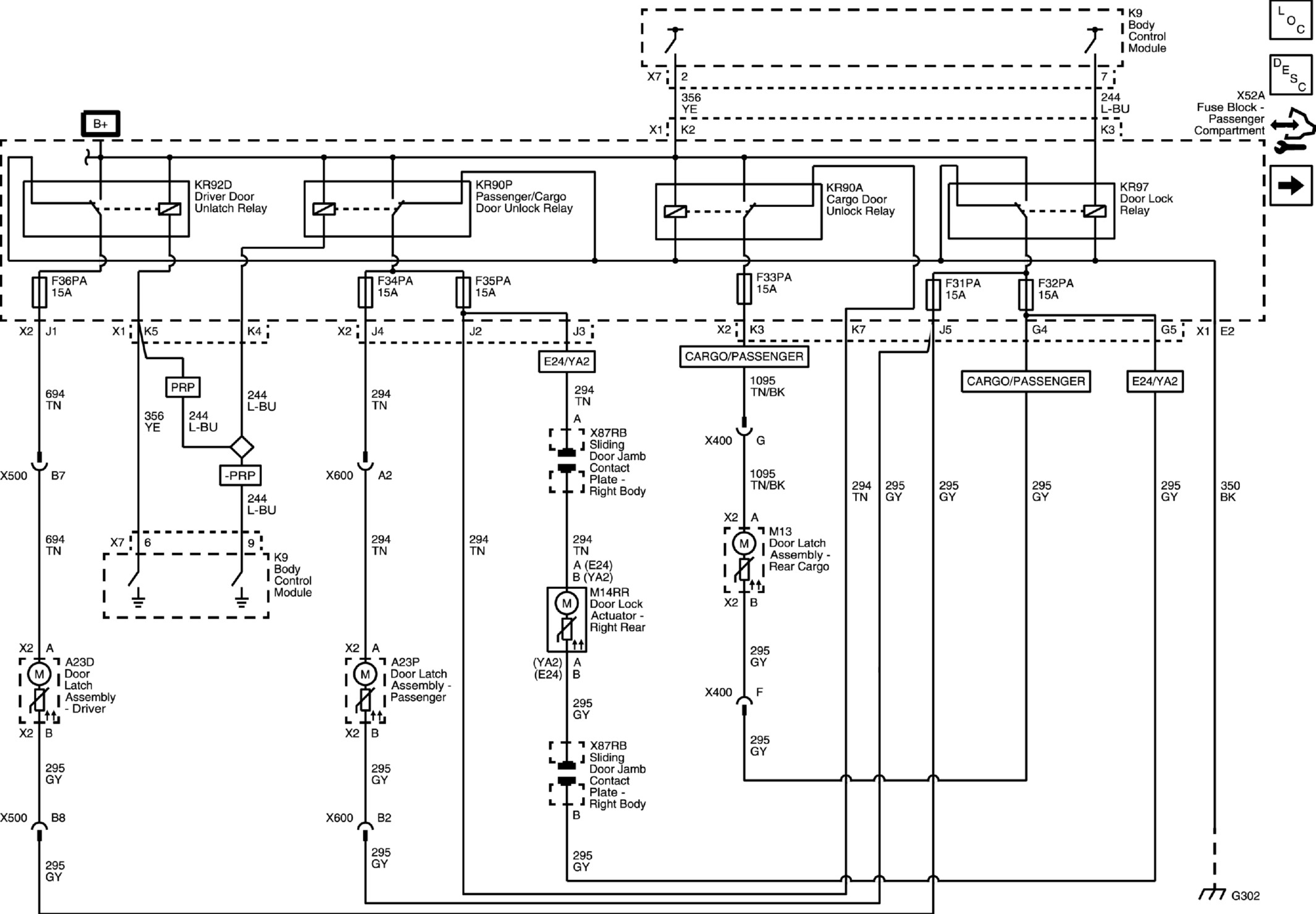

Home >> Chevrolet >> 2018 >> Express 2500 LS, 2.8L Eng VIN 1 >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Power Door Lock System And Release Systems >> Schematic Wiring Diagrams >> Door Lock/Indicator Wiring Schematics >> Lock/Unlock Control
