Installation Procedure

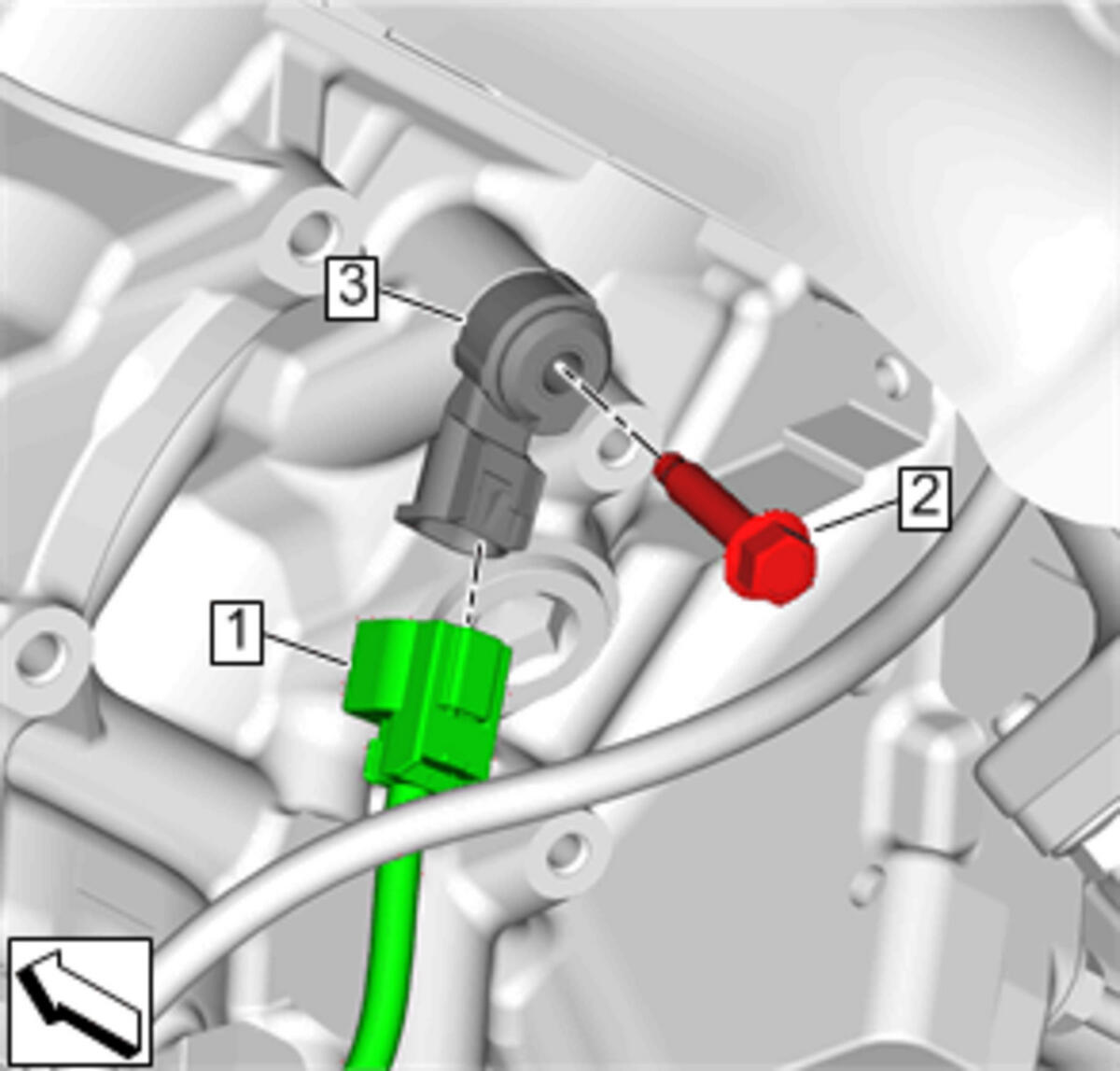

  1. GM4852296Courtesy of GENERAL MOTORS COMPANY

    Position the knock sensor (3).

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the knock sensor bolt (2) and tighten to 25 N.m (18 lb ft).
  3. Connect the electrical connector (1).

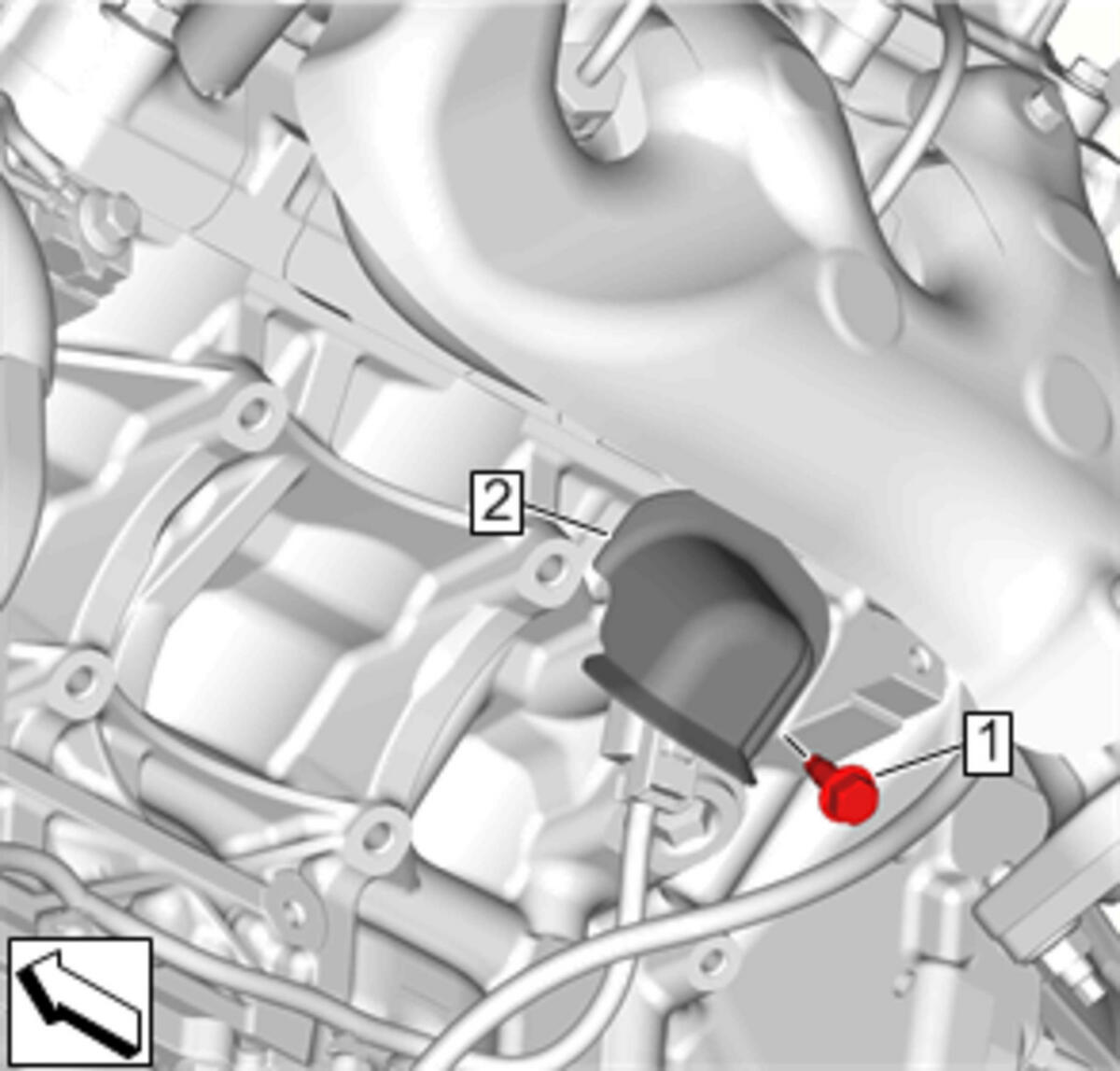

  4. GM4852295Courtesy of GENERAL MOTORS COMPANY

    Position the knock sensor shield (2).

  5. Install the knock sensor shield bolt (1) and tighten to 25 N.m (18 lb ft).
  6. Lower the vehicle.
  7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery)Battery Negative Cable Disconnection and Connection (Dual Battery)
