Engine Coolant Temperature Sensor Replacement

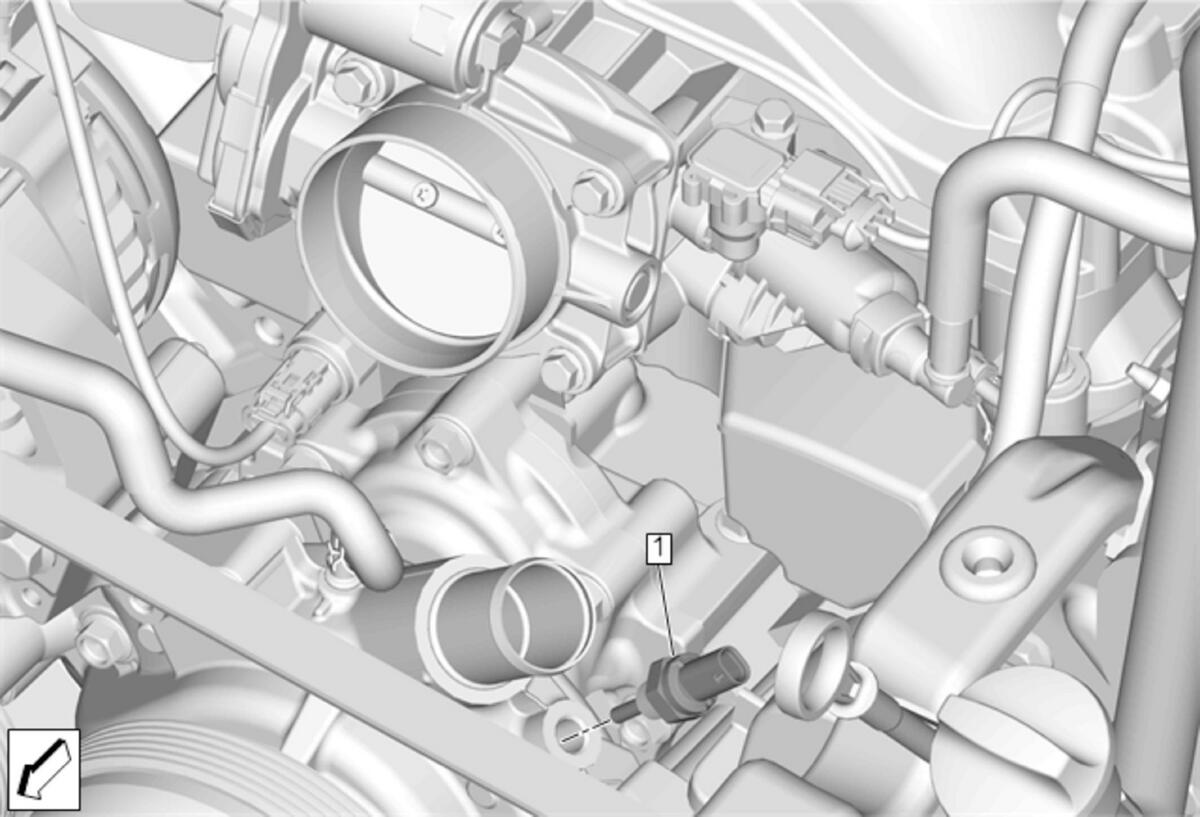

GM4850181Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (Static LC8, LV1, L96)Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
  2. Disconnect the radiator inlet hose from the water pump and reposition. Radiator Inlet Hose Replacement (LV1)
  3. Disconnect the electrical connector.
1 Engine Coolant Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
20 N.m (15 lb ft)
