Chassis Control Module Replacement (Short Wheel Base)

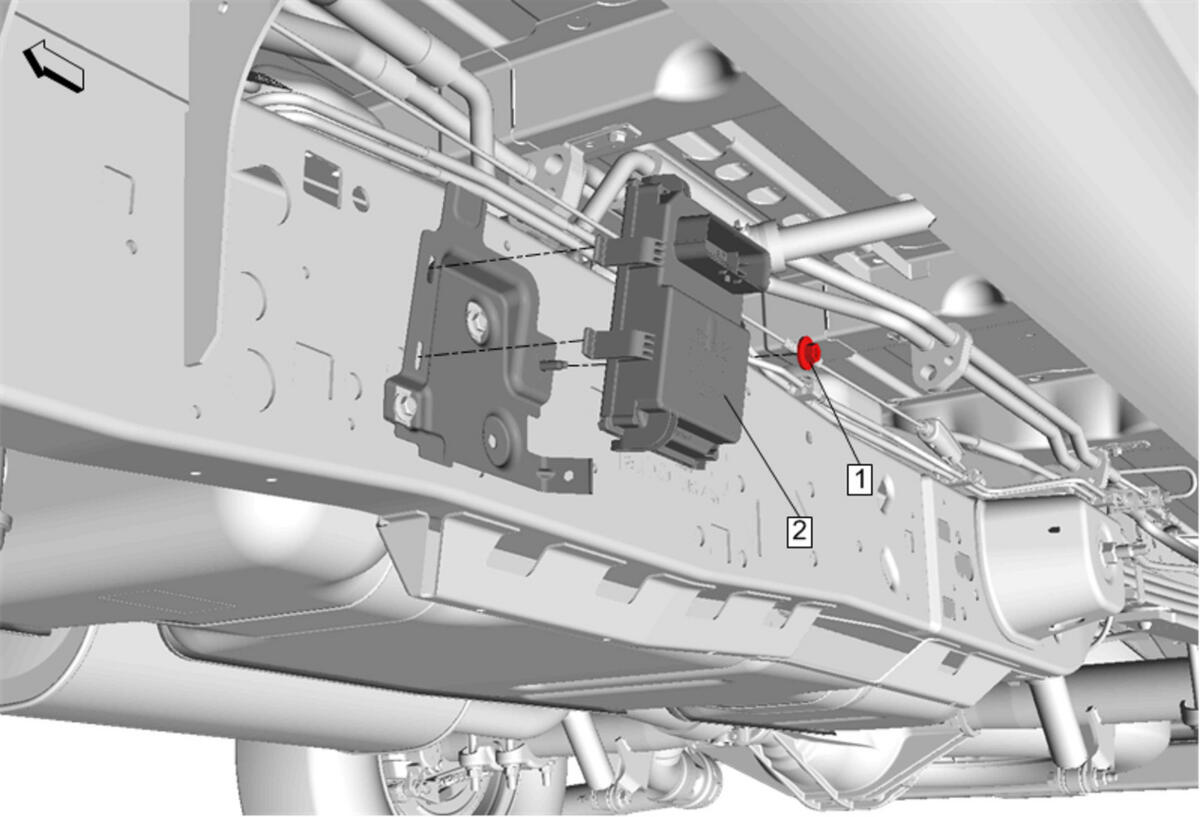

GM4846895Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle .
1 Chassis Control Module Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9N.m (80 lb in)
2 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing the chassis control module program the module. Control Module References
