Intake Manifold Tuning Vacuum Control Solenoid Valve Replacement

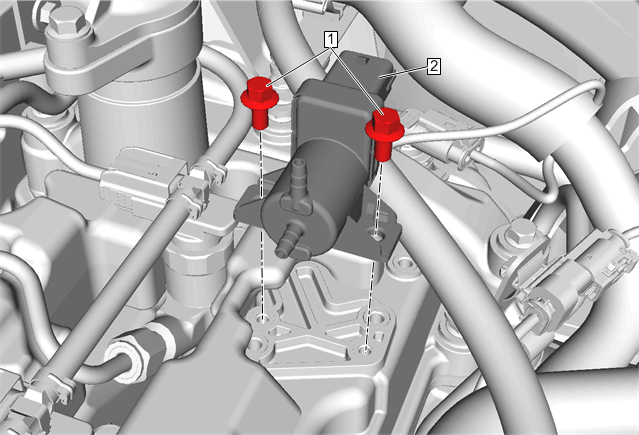

GM4625699Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Cover Replacement
1 Intake Manifold Tuning Vacuum Control Solenoid Valve Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Intake Manifold Tuning Vacuum Control Solenoid Valve

Procedure

  1. Disconnect the electrical connector.
  2. Disconnect the vacuum hoses.
