Fuel Heater Pipe Replacement

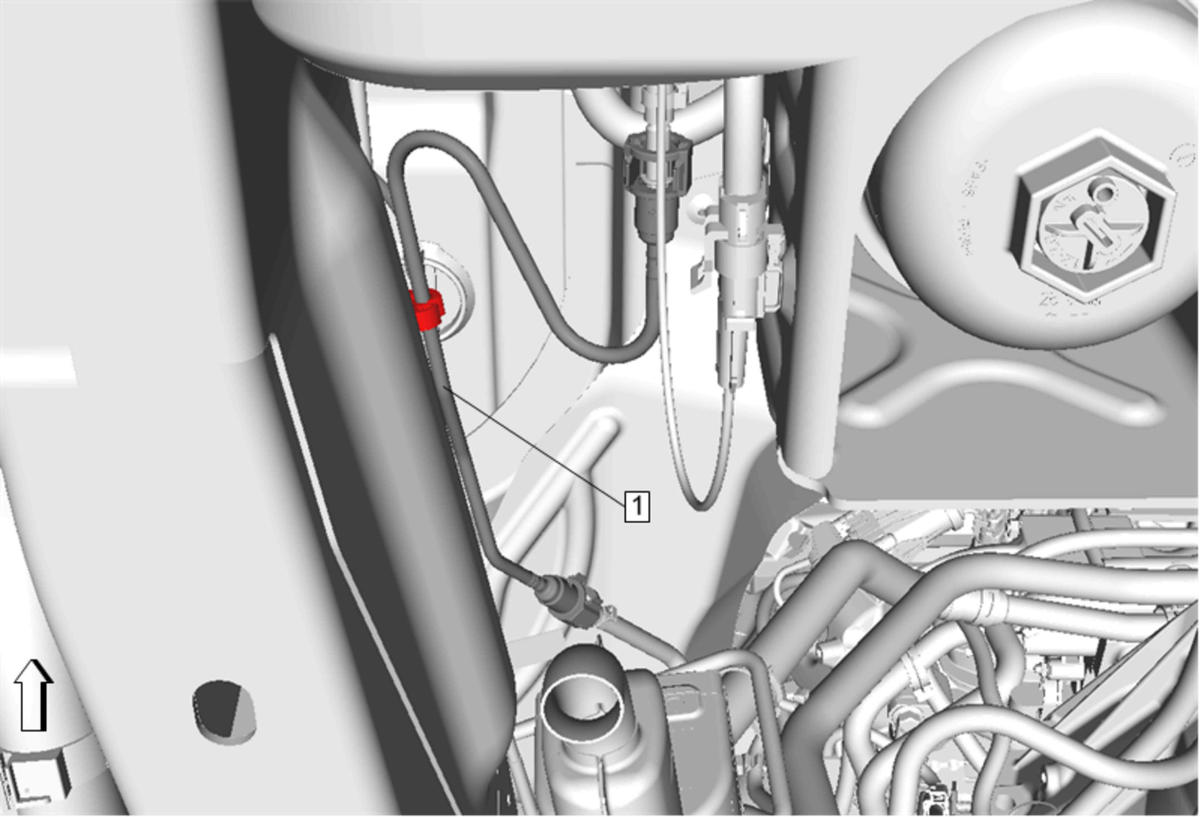

GM4601476Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Fuel Heater Pipe
Procedure
Disconnect the fuel heater pipe and remove from retainer. Plastic Collar Quick Connect Fitting Service
