Installation Procedure

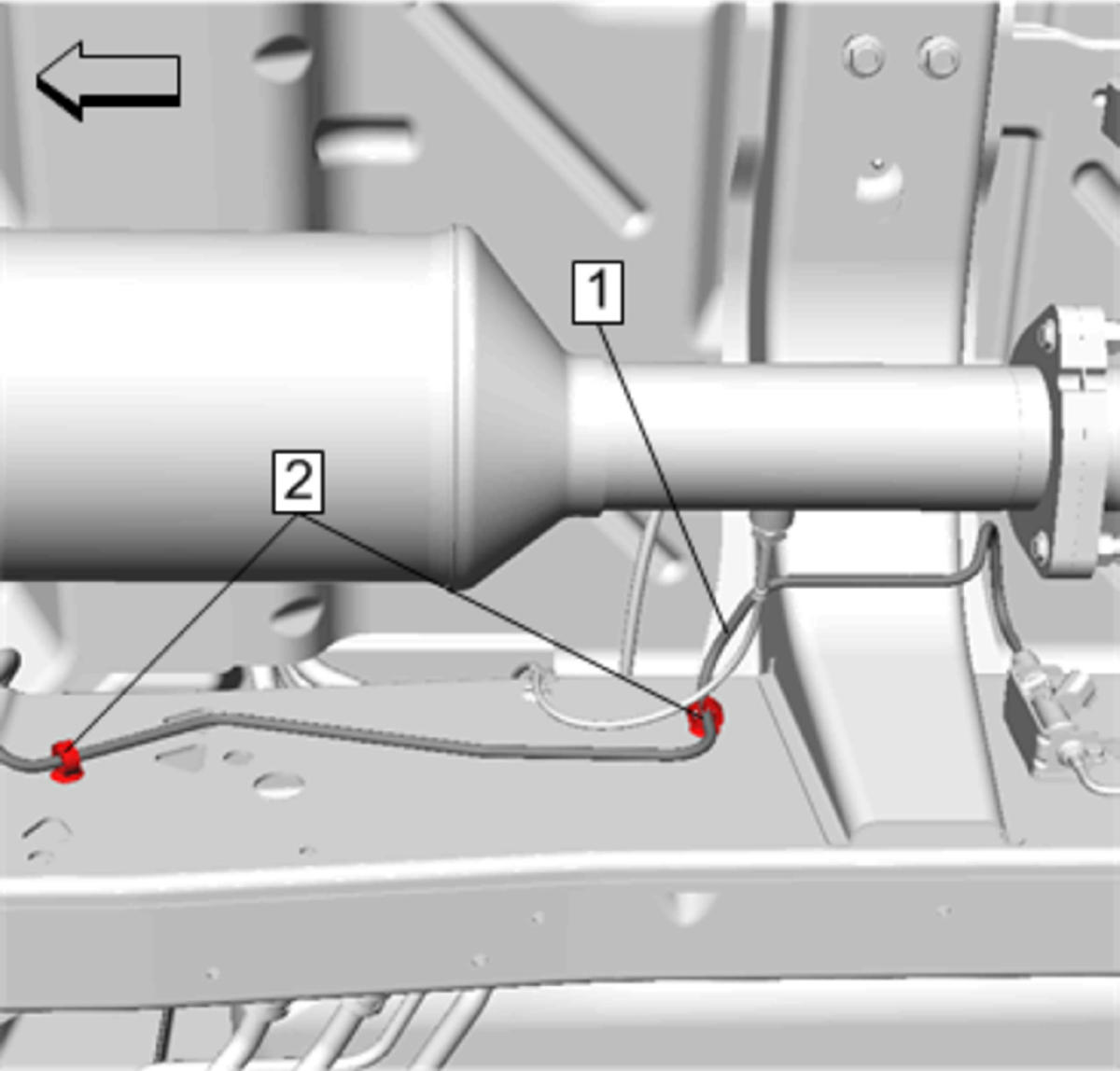

  1. GM4605869Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Hydrocarbon Injection Front Pipe (1) @ Retainer (2) - Install [2x]

  2. Fuel Feed Hydrocarbon Injection Front Pipe (1) - Connect - CH-49736  Hydrocarbon Injector Quick Connect Release Tool

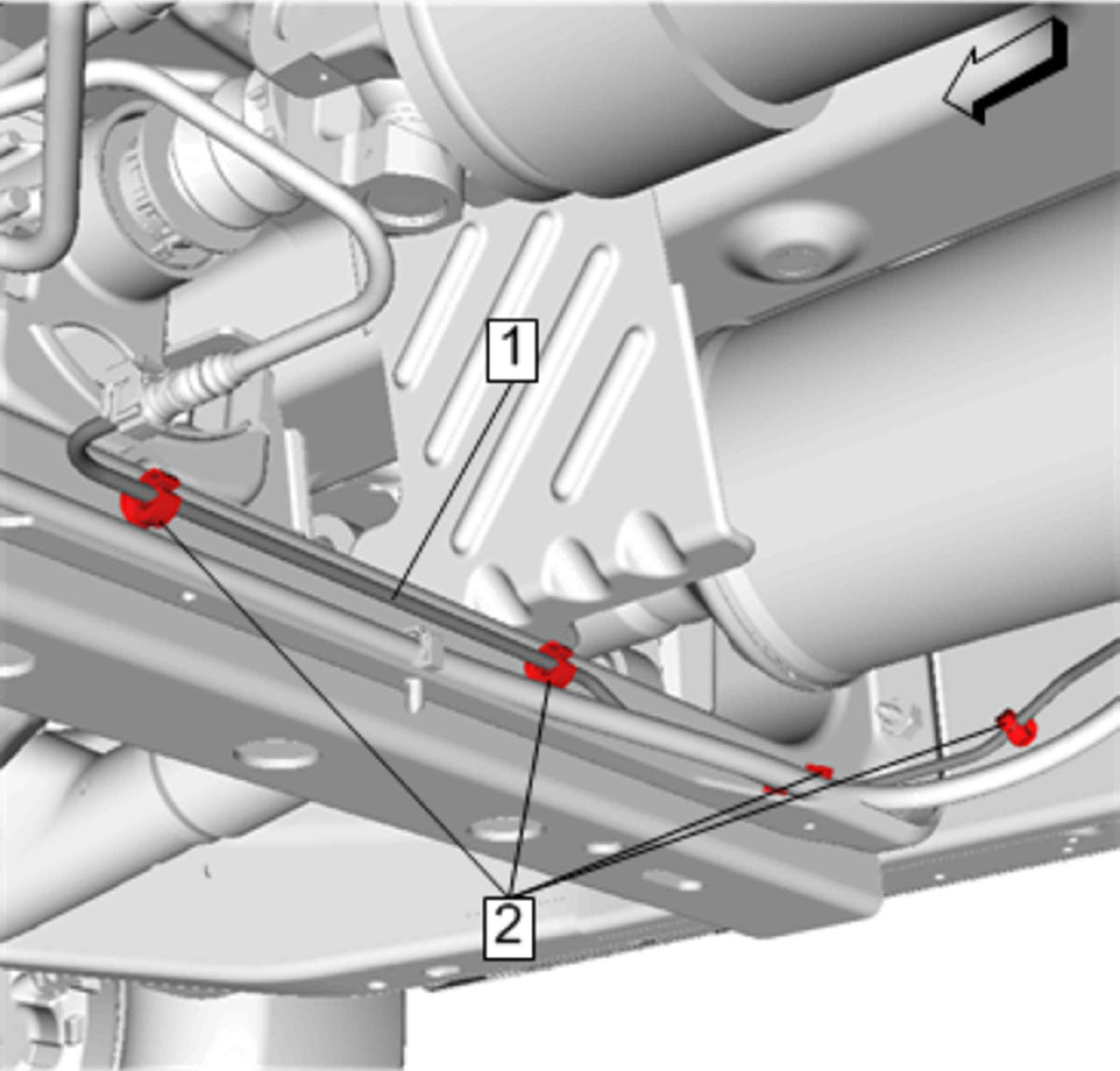

  3. GM4605867Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Hydrocarbon Injection Front Pipe (1) @ Retainer (2) - Install [4x]

  4. Fuel Feed Hydrocarbon Injection Front Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  5. Lower the vehicle.
