Power Mirror Switch Replacement

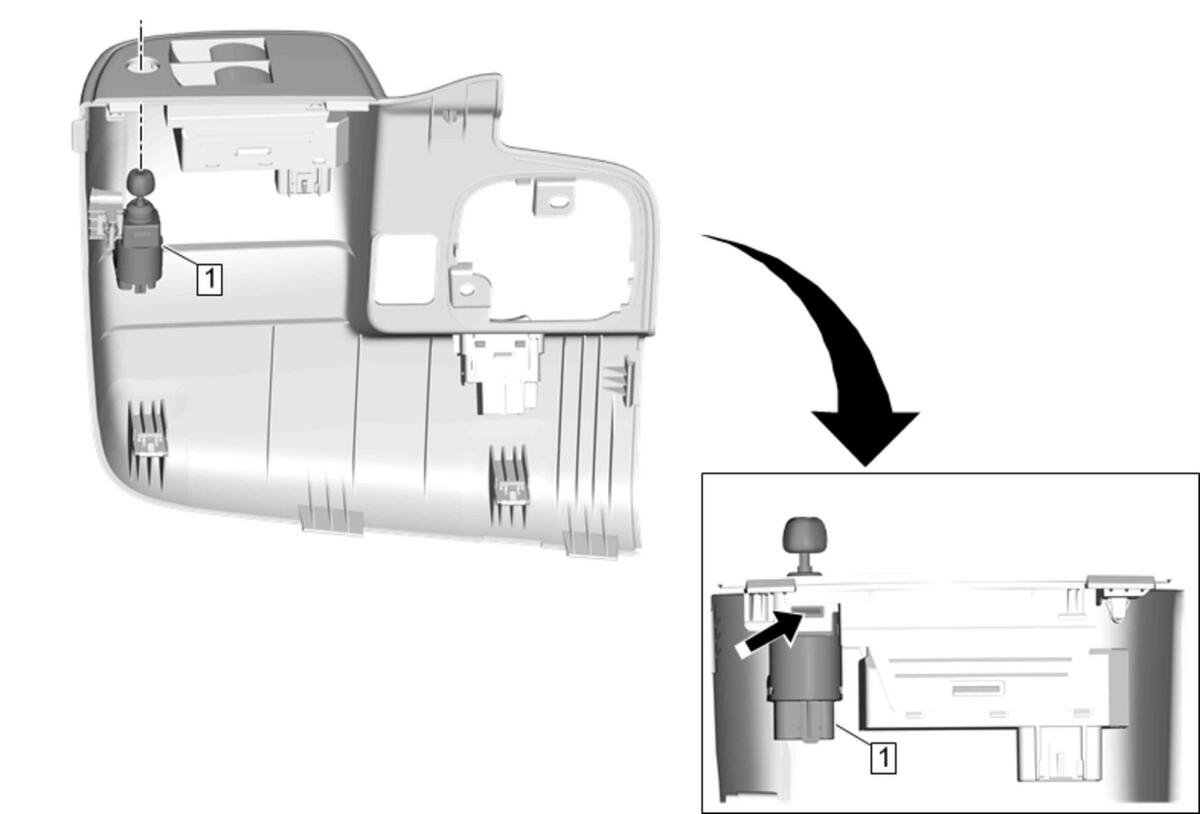

GM4862820Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Door Trim Plate Replacement
1 Power Mirror Switch
Procedure
From the backside of the front door trim plate, use a plastic trim tool to gently push in on the side tabs to release the switch from the front door trim plate.
