Radio Replacement (IOA)

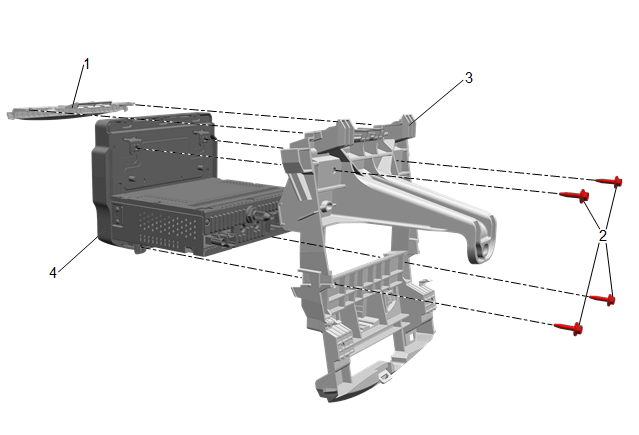

GM4939456
Callout Component Name

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection
  2. Digital Radio Receiver Bracket Replacement
1 Instrument Panel Upper Trim Panel Cover
2 Radio Bolt [4x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
3 Digital Radio Receiver Bracket
4 Radio
Procedure
Run all necessary programming and setup procedures. Control Module References
