Installation Procedure

  1. GM2887181

    Install the radio antenna base (1).

  2. Connect the electrical connectors.

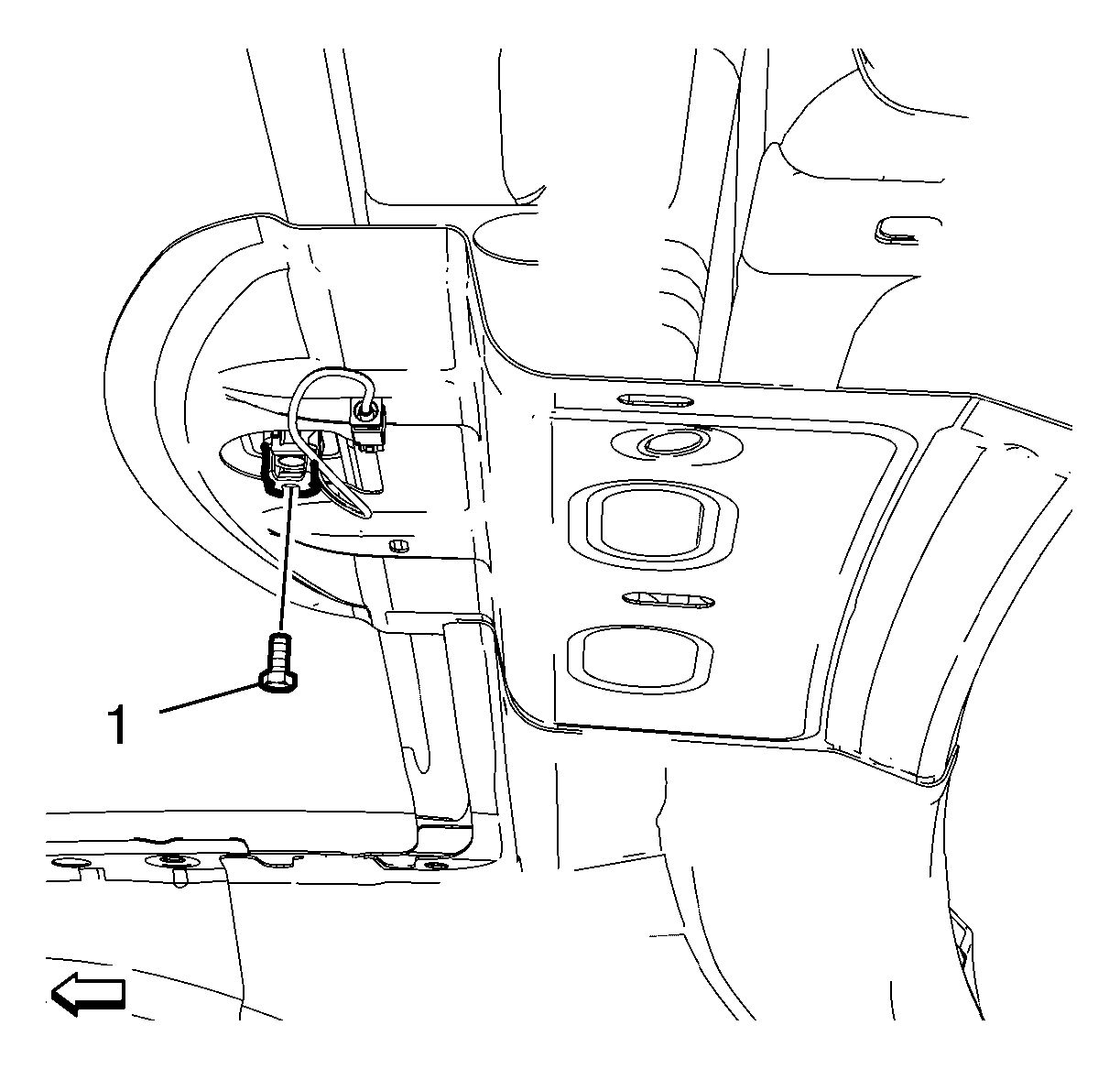

  3. GM2887179
    CAUTION:

    Refer to Fastener Caution .

    Install the radio antenna base bolt (1) and tighten to 9 N.m (80 lb in).

  4. Headlining Trim Panel - Install - Headlining Trim Panel Replacement (Notchback)Headlining Trim Panel Replacement (Hatchback) .
