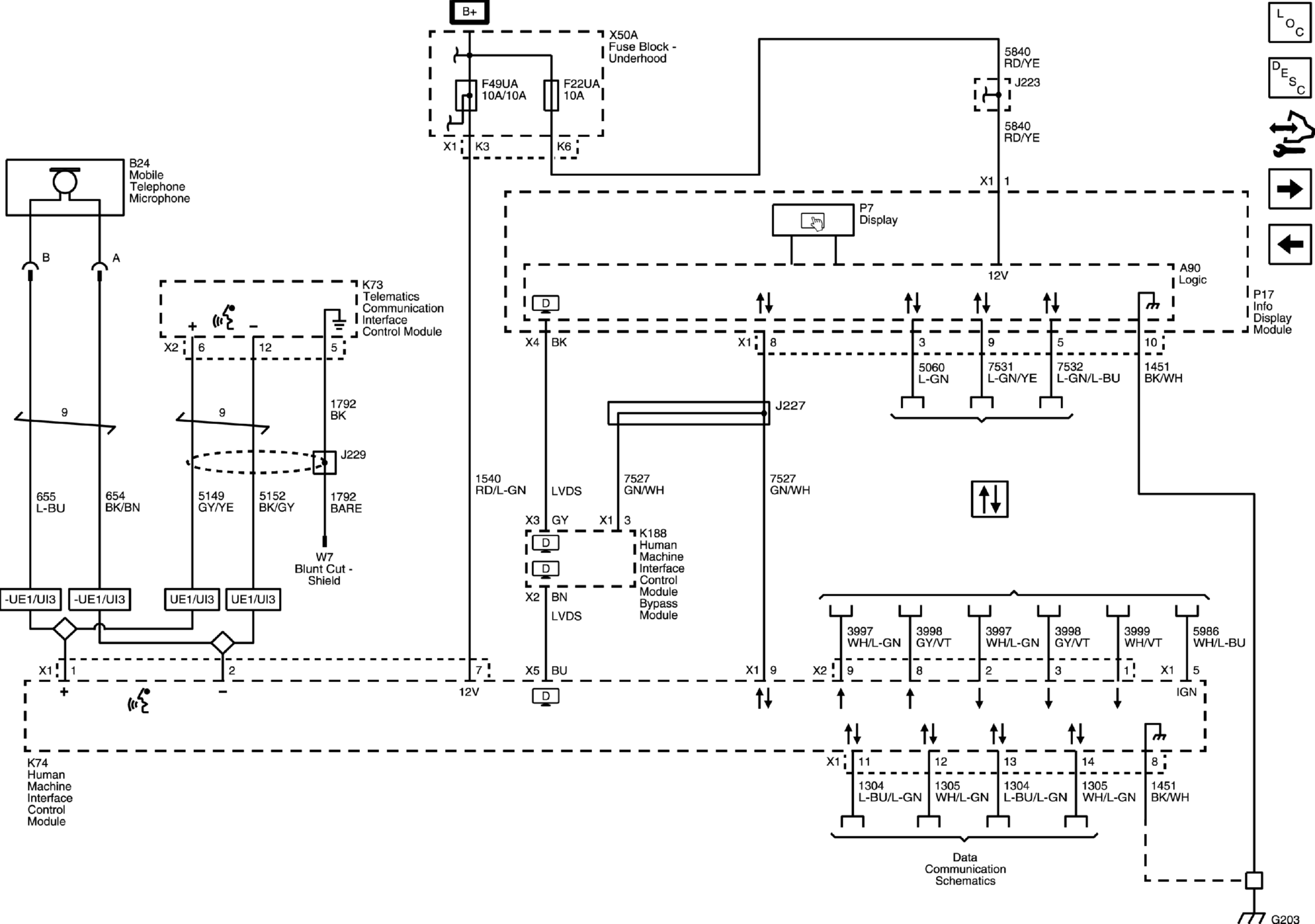

Human Machine Interface and Info Display - Power, Ground, Serial Data, and Microphone
Human Machine Interface and Info Display - Power, Ground, Serial Data, and Microphone
