Barometric Pressure Sensor Replacement

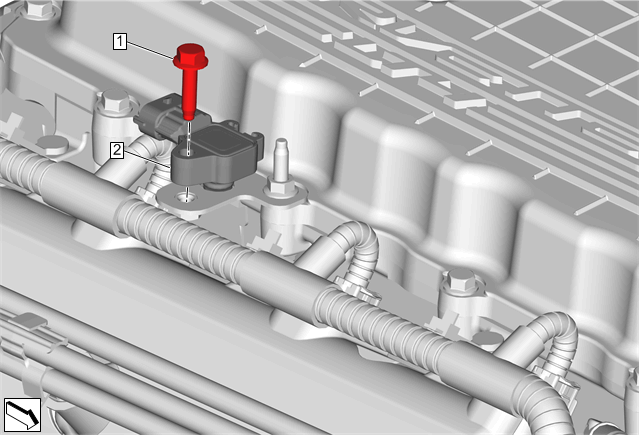

GM4847046
Callout Component Name
1 Barometric Pressure Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Barometric Pressure Sensor
Procedure
Disconnect the electrical connector.
