Home >> Chevrolet >> 2018 >> Corvette Stingray, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Wiring Schematics And Routing Diagrams >> Moveable Window Schematics >> Driver

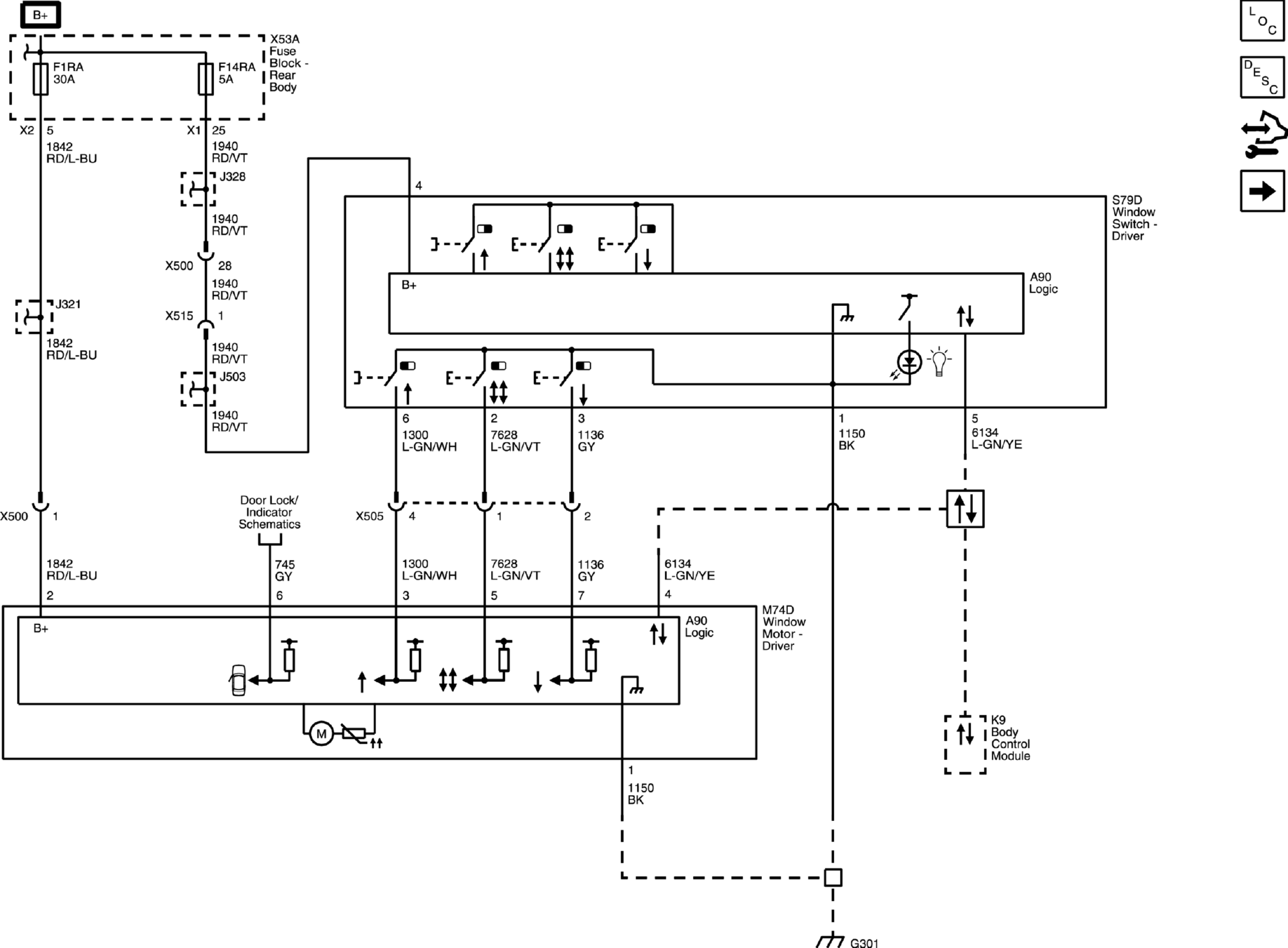

Moveable Window Schematics: Driver

GM4648519
