Front Side Door Window Switch Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate - passenger side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Passenger Side .

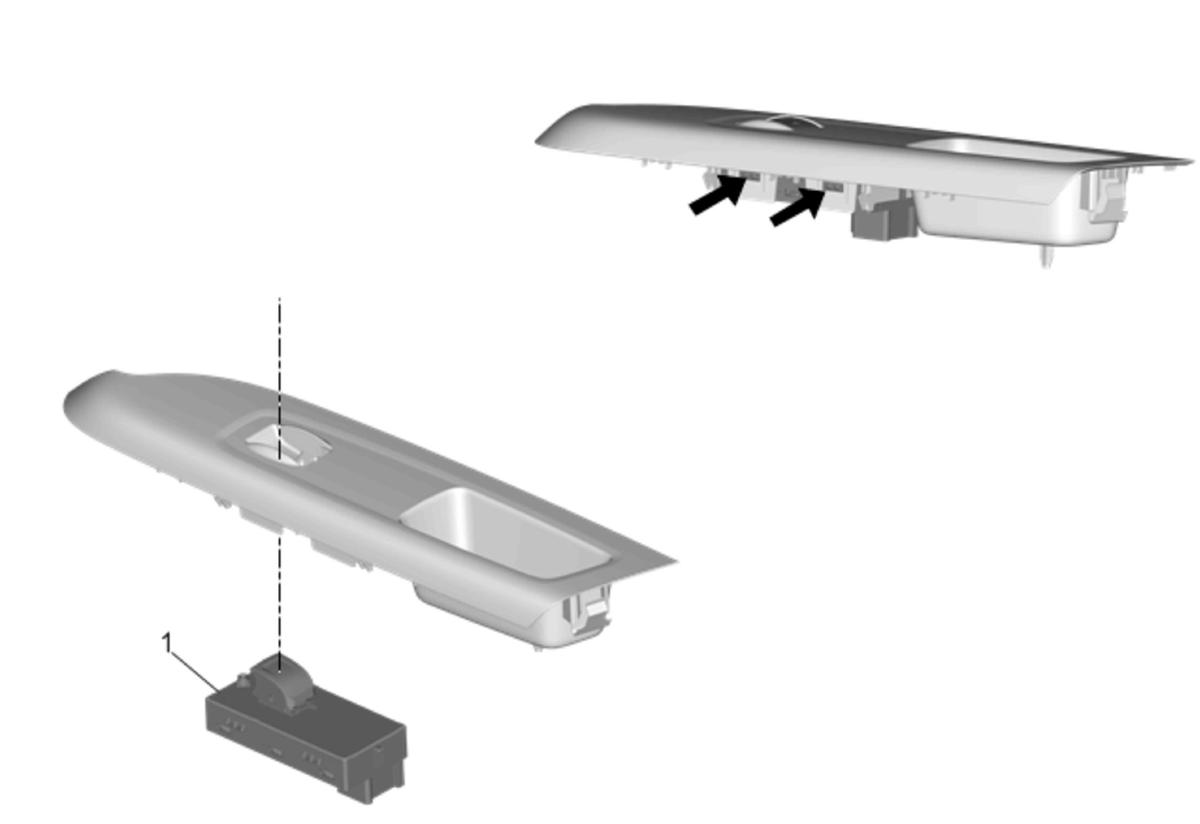

1	Front Side Door Window Switch Assembly Procedure Release tabs on switch to remove from front side door accessory switch mount plate - passenger side. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - passenger side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Passenger Side .

Front Side Door Window Switch Assembly

Procedure

Release tabs on switch to remove from front side door accessory switch mount plate - passenger side.
Refer to Control Module References for programming and set up procedures, if required.
