X51A Fuse Block - Instrument Panel Label

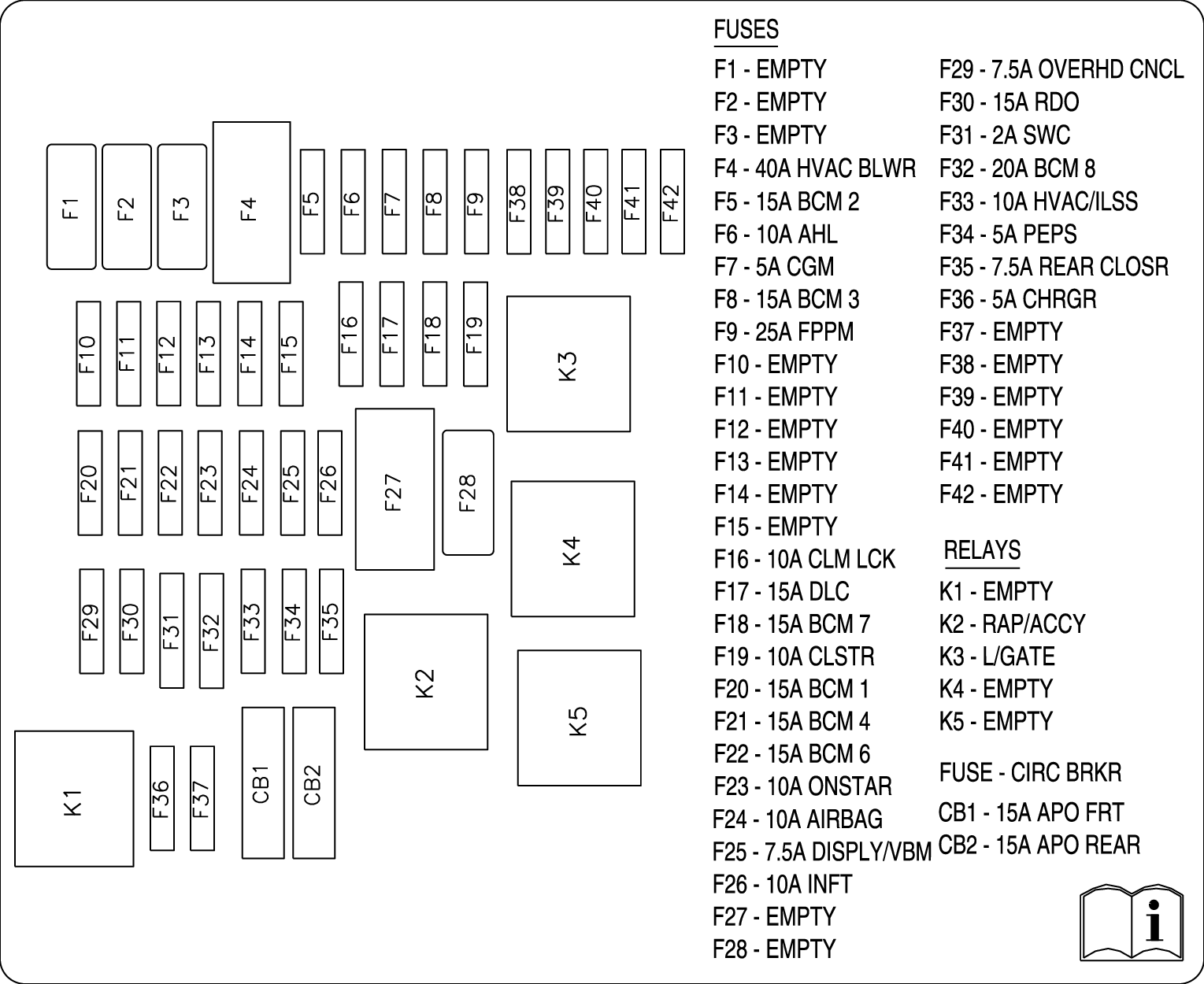

Fig 1: X51A Fuse Block - Instrument Panel Label

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F1	EMPTY	F1DA	30A	Not Used
F2	EMPTY	F2DA	30A	Not Used
F3	EMPTY	F3DA	30A	Not Used
F4	HVAC BLWR	F4DA	40A	K8 Blower Motor Control Module
F5	BCM 2	F5DA	15A	K9 Body Control Module
F6	EMPTY	F6DA	25A	Not Used
F7	EMPTY	F7DA	30A	Not Used
F8	BCM 3	F8DA	15A	K9 Body Control Module
F9	FPPM	F9DA	25A	K111 Fuel Pump Driver Control Module
F10	EMPTY	F10DA	30A	Not Used
F11	EMPTY	F11DA	30A	Not Used
F12	EMPTY	F12DA	30A	Not Used
F13	EMPTY	F13DA	30A	Not Used
F14	EMPTY	F14DA	15A	Not Used
F15	EMPTY	F15DA	30A	Not Used
F16	EMPTY	F16DA	30A	Not Used
F17	DLC	F17DA	15A	X84 Data Link Connector
F18	BCM 7	F18DA	15A	K9 Body Control Module
F19	CLUSTER	F19DA	10A	P16 Instrument Cluster
F20	BCM 1	F20DA	15A	K9 Body Control Module
F21	BCM 4	F21DA	15A	K9 Body Control Module
F22	BCM 6	F22DA	15A	K9 Body Control Module
F23	ONSTAR	F23DA	10A	K73 Telematics Communication Interface Control Module
F24	AIRBAG	F24DA	10A	K36 Inflatable Restraint Sensing and Diagnostic Module K85 Passenger Presence Module
F25	DISPLY	F25DA	7.5A	A26 HVAC Controls P17 Info Display Module
F26	INFT	F26DA	10A	K74 Human Machine Interface Control Module X83 Auxiliary Audio Input
F27	EMPTY	F27DA	30A	Not Used
F28	EMPTY	F28DA	30A	Not Used
F29	OVRHD CNSL	F29DA	7.5A	S48B Multifunction Switch - Overhead Console
F30	RDO	F30DA	15A	A11 Radio
F31	SWC	F31DA	2A	S70L Steering Wheel Controls Switch - Left S70R Steering Wheel Controls Switch - Right
F32	BCM 8	F32DA	20A	K9 Body Control Module
F33	HVAC	F33DA	10A	P36 Battery State of Charge Indicator K33 HVAC Control Module
F34	PEPS	F34DA	5A	K84 Keyless Entry Control Module
F35	REAR CLOSR	F35DA	7.5A	KR95A Liftgate Unlatch Relay
F36	CHARGER	F36DA	5A	T22 Mobile Device Wireless Charger Module
F37	EMPTY	F37DA	20A	Not Used
F38	EMPTY	F38DA	-	Not Used
F39	EMPTY	F39DA	-	Not Used
F40	EMPTY	F40DA	-	Not Used
F41	EMPTY	F41DA	-	Not Used
F42	EMPTY	F42DA	-	Not Used
Circuit Breakers
CB1	APO FRT	CB1DA	15A	X80H Accessory Power Receptacle - Center Console
CB2	APO RR	CB2DA	15A	X80L Accessory Power Receptacle - Rear Console
Relays
K1	-	-	-	Not Used
K2	RAP/ACCY	KR76 Retained Accessory Power Relay	-	CB2DA CB1DA F36DA
K3	LIFTGATE	KR95A Liftgate Unlatch Relay	-	A23C Liftgate Latch Assembly
K4	-	-	-	Not Used
