Low Frequency Rear Compartment Antenna Replacement

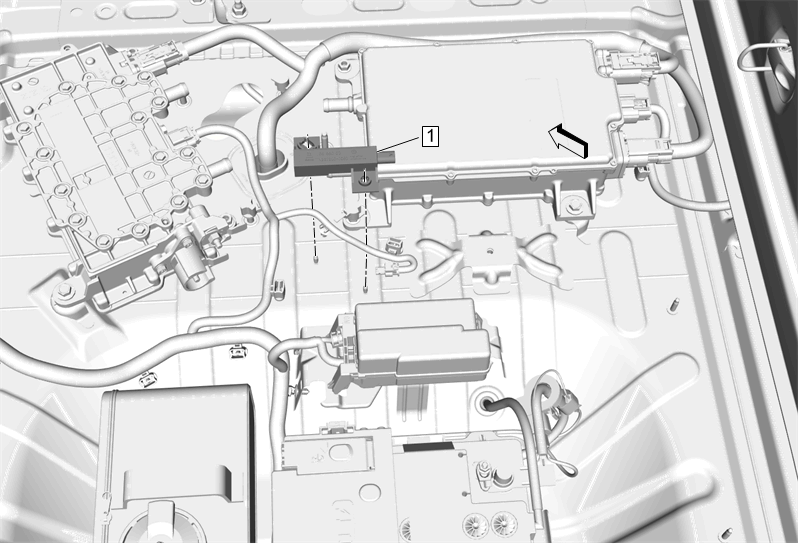

Fig 1: Low Frequency Rear Compartment Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Floor Stowage Trim Compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement
1	Low Frequency Rear Compartment Antenna Procedure Release the plastic retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Rear Compartment Floor Stowage Trim Compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement

Low Frequency Rear Compartment Antenna

Procedure
