Radio/Navigation System Wiring Schematics
>>
Info Display
Info Display

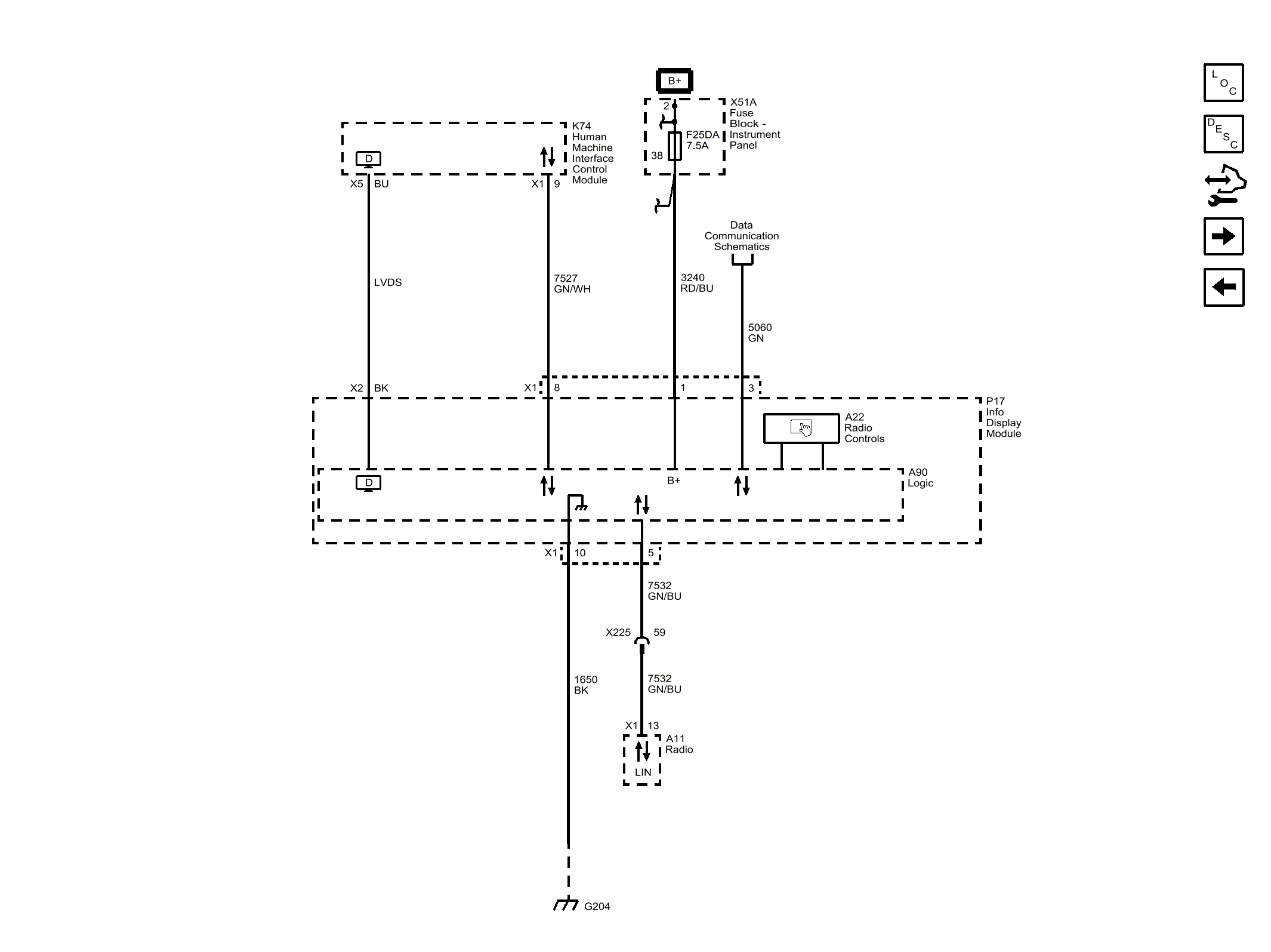

Fig 1: Info Display
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
