Radio Front Speaker Replacement

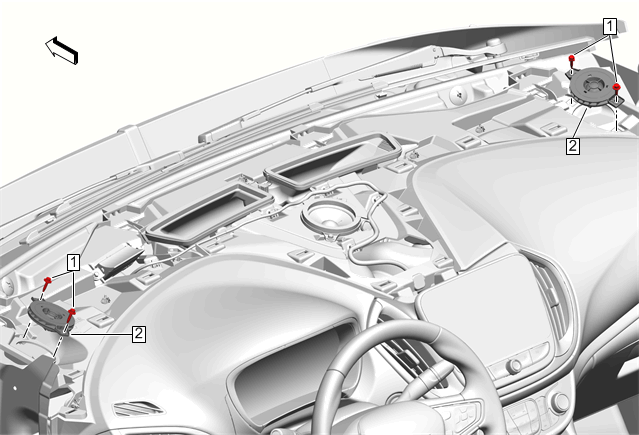

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Extension. Refer to Instrument Panel Extension Replacement
1	Radio Front Speaker Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Speaker Procedure Disconnect the electrical connector.
