Installation Procedure

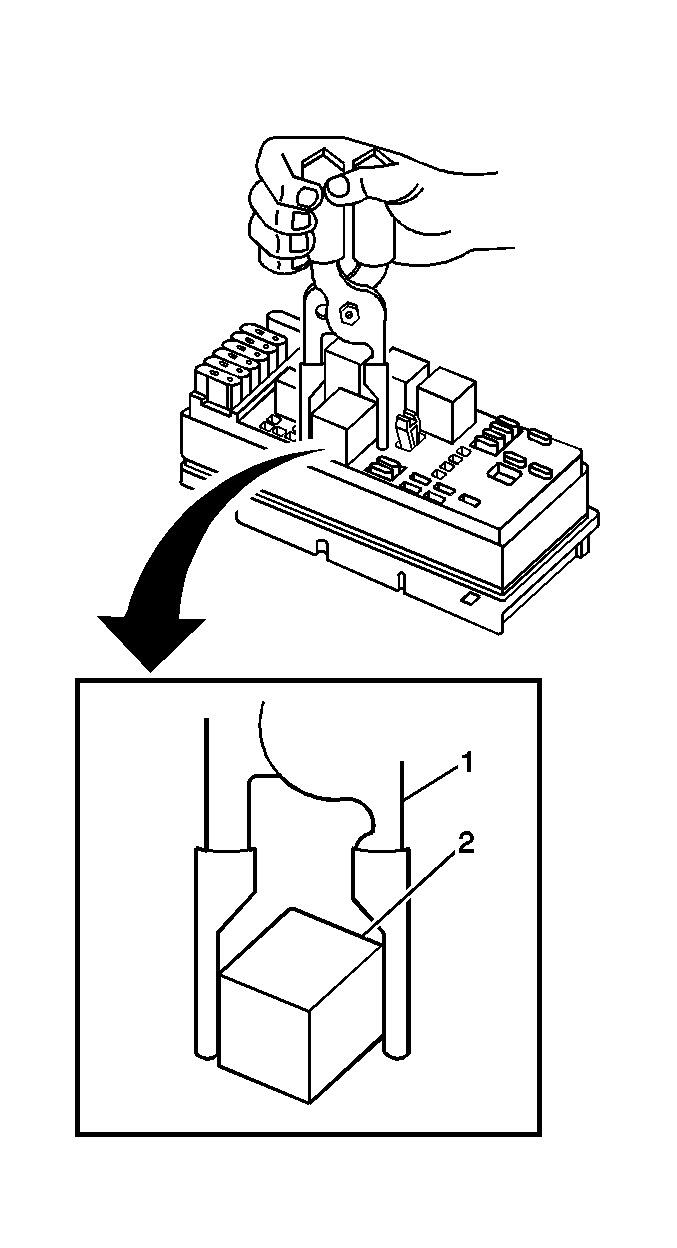

    Fig 1: Removing/Installing Relay
    GM786629Courtesy of GENERAL MOTORS COMPANY
  1. Install the relay (2) in the same position as removed.
  2. Install the electrical center cover.
