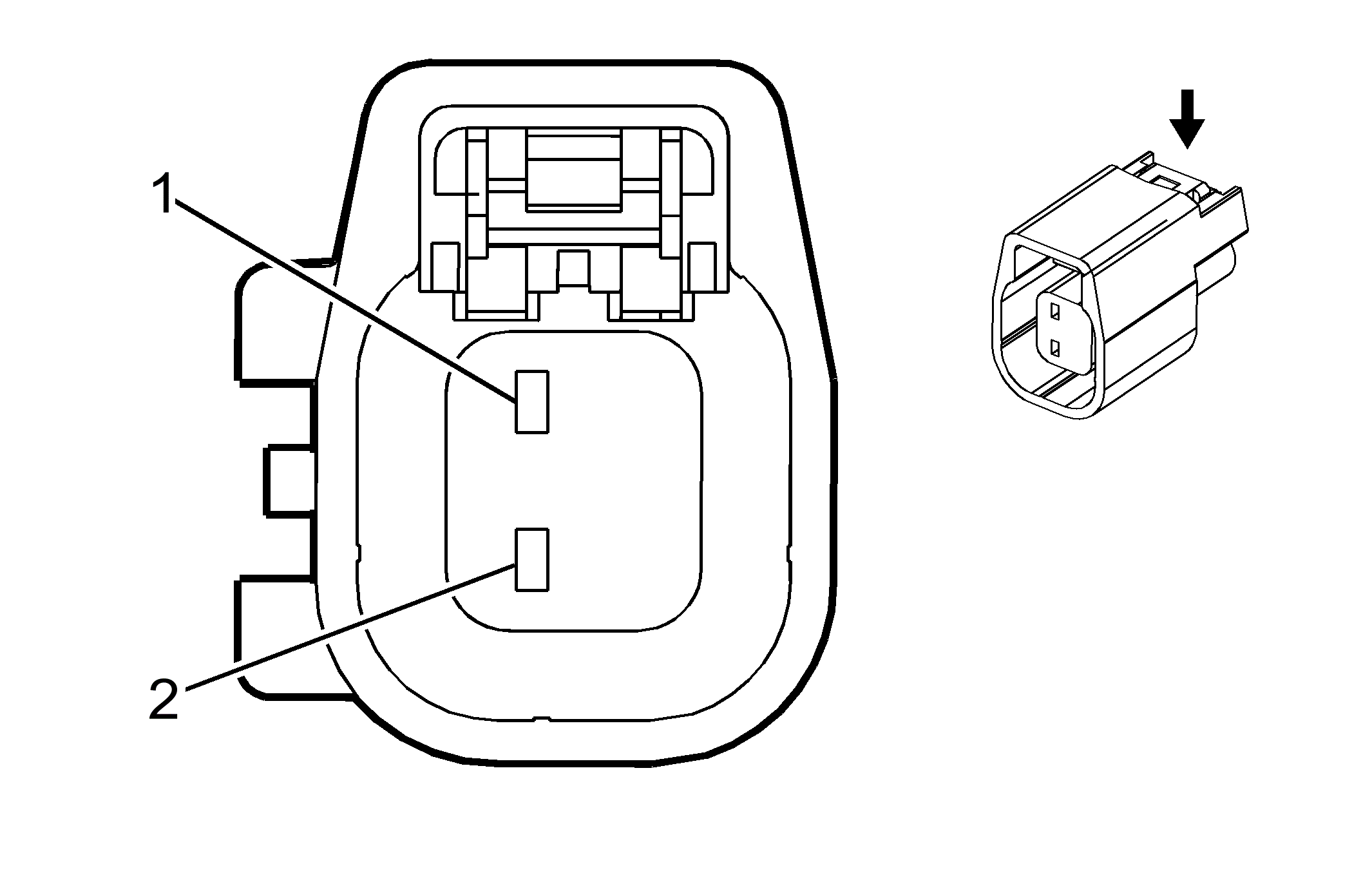

B5LF Wheel Speed Sensor - Left Front
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 7287-1597-30
- Service Connector: 13587192
- Description: 2-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
830 |
Wheel Speed Sensor Signal Left Front |
I |
- |
| 2 |
0.5 |
YE |
873 |
Left Front Wheel Speed Sensor Low Reference |
I |
- |
