Ignition Controls - Bank 2 Ignition System

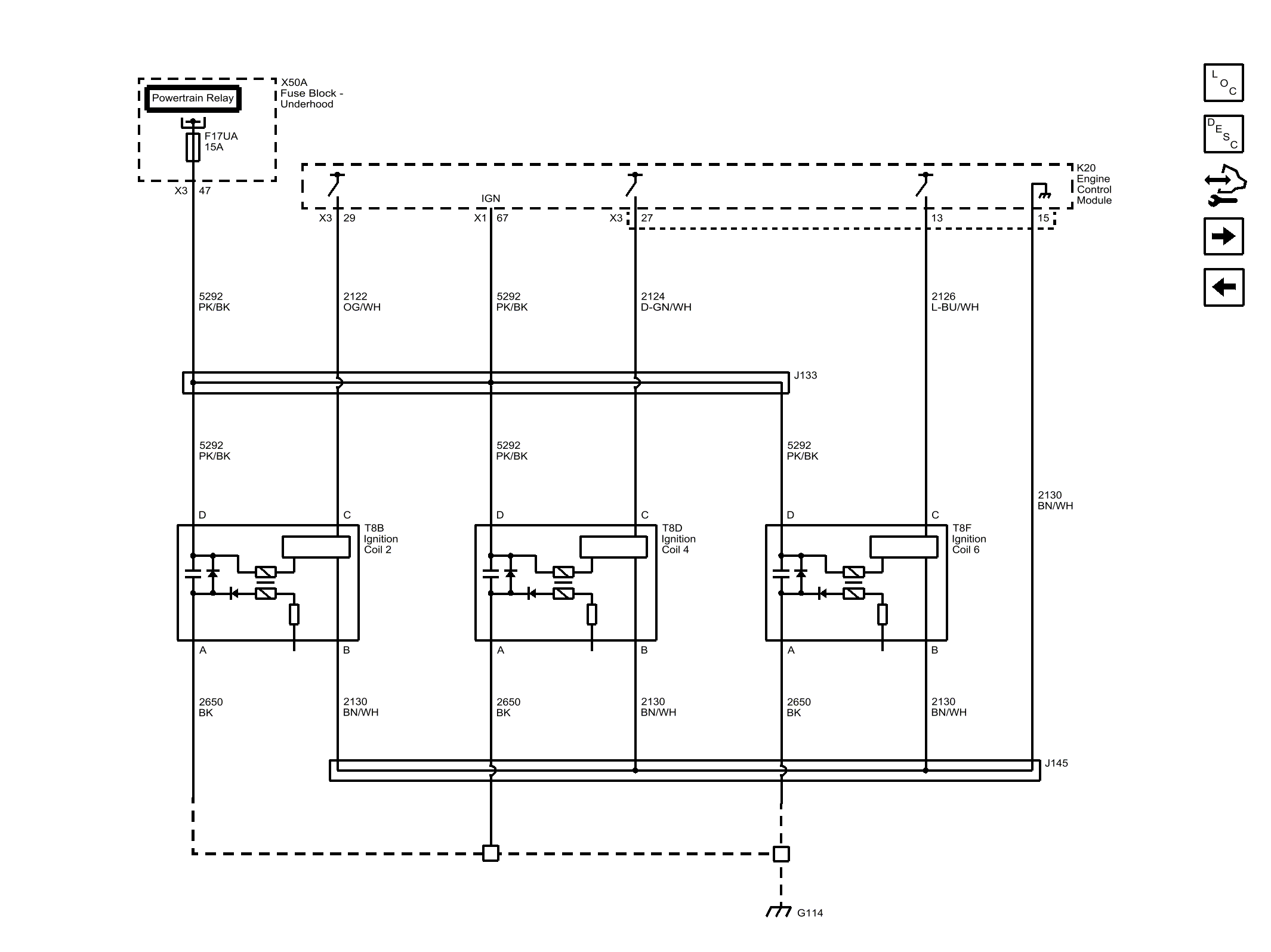

Fig 1: Ignition Controls - Bank 2 Ignition System

GM4405856

Courtesy of GENERAL MOTORS COMPANY
