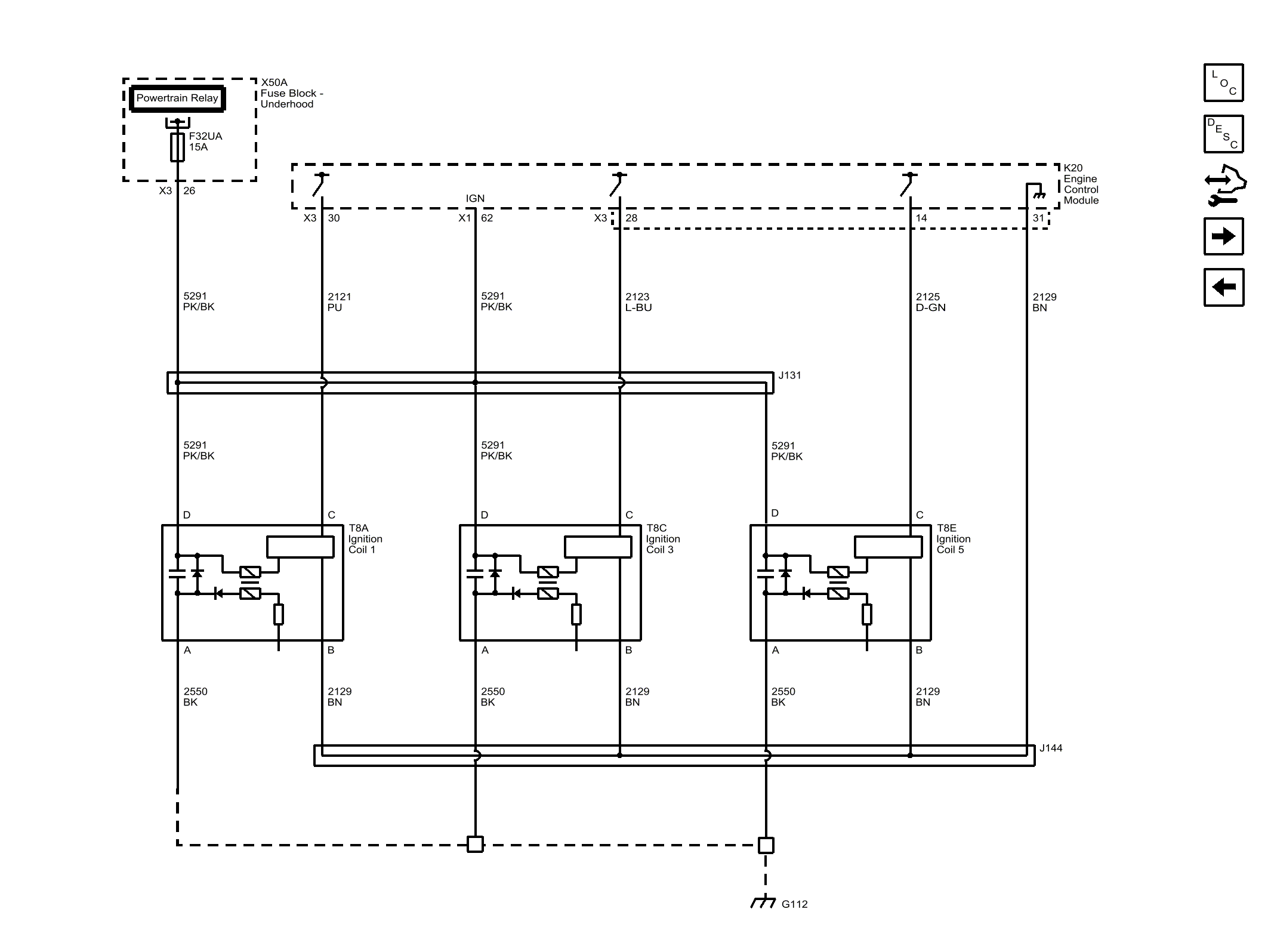

Ignition Controls - Bank 1 Ignition System

Fig 1: Ignition Controls - Bank 1 Ignition System
GM4405857Courtesy of GENERAL MOTORS COMPANY
