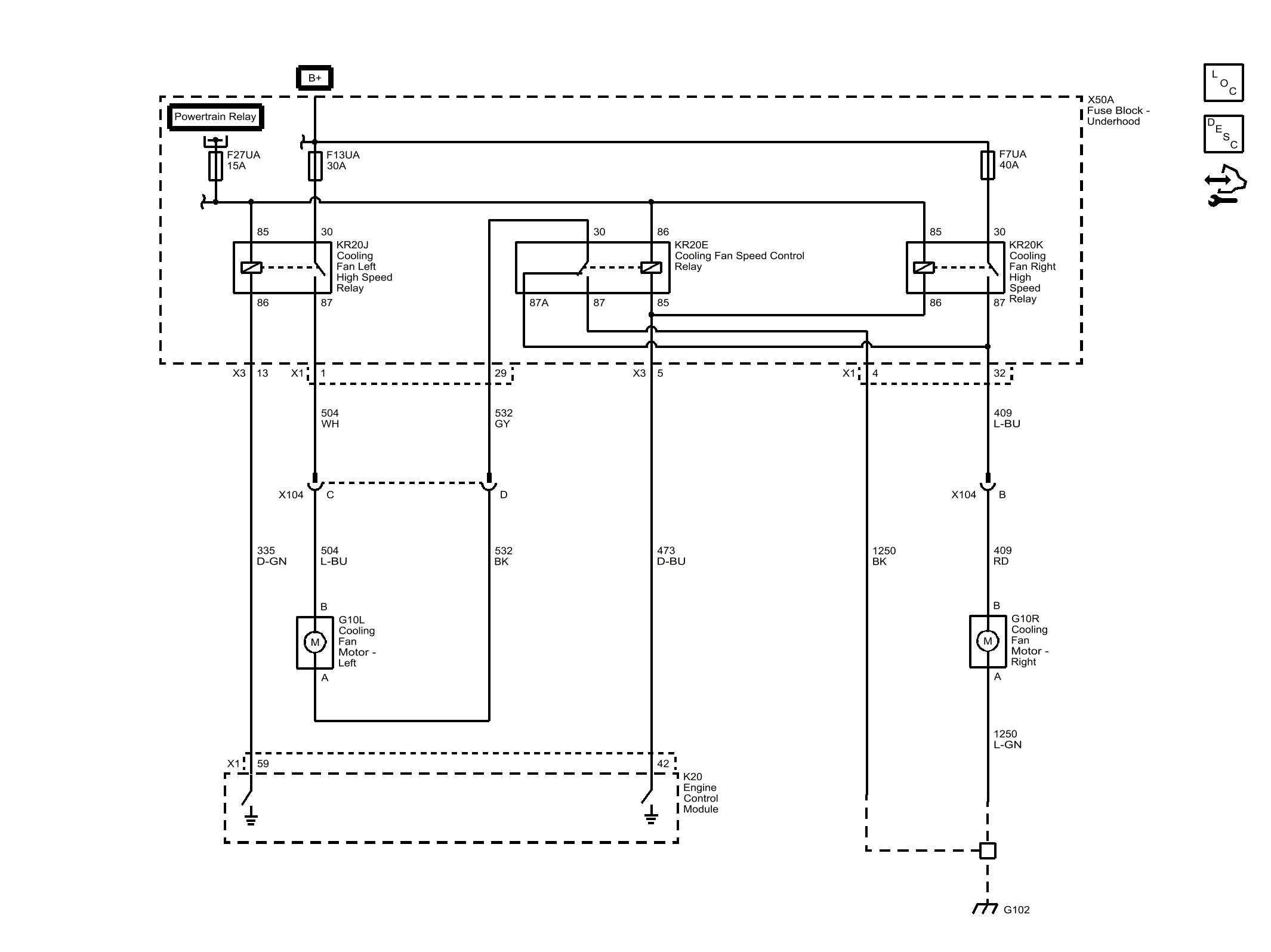

Home >> Chevrolet >> 2017 >> Traverse LS Base >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic Wiring Diagrams >> Engine Heating/Cooling Wiring Schematics >> Engine Cooling
