Coolant Heater Replacement

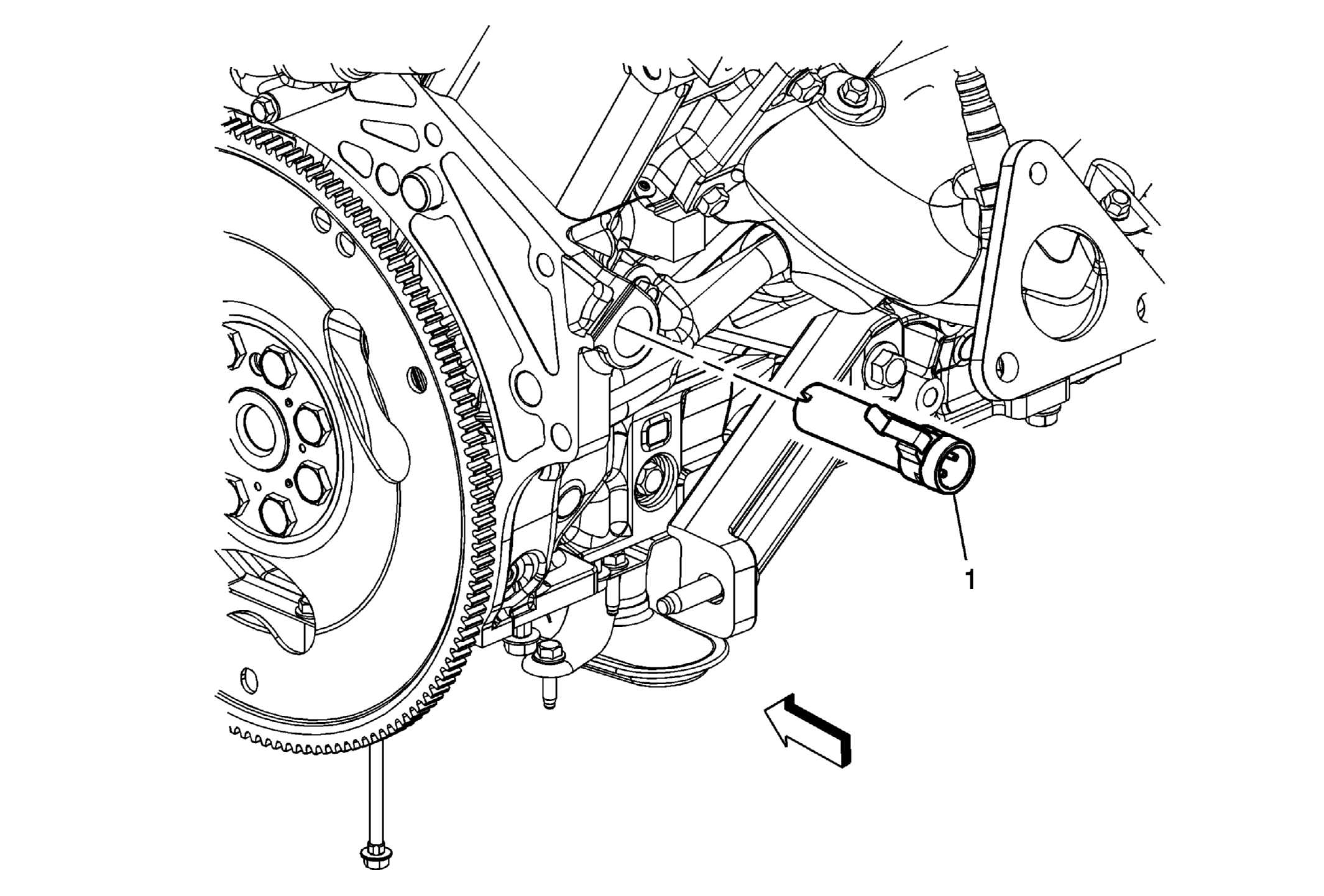

Fig 1: Coolant Heater
GM1862441Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Coolant Heater

Procedure

  1. Disconnect the coolant heater cord from the coolant heater.
  2. Remove the coolant heater.
