Starting and Charging Wiring Schematics: Charging

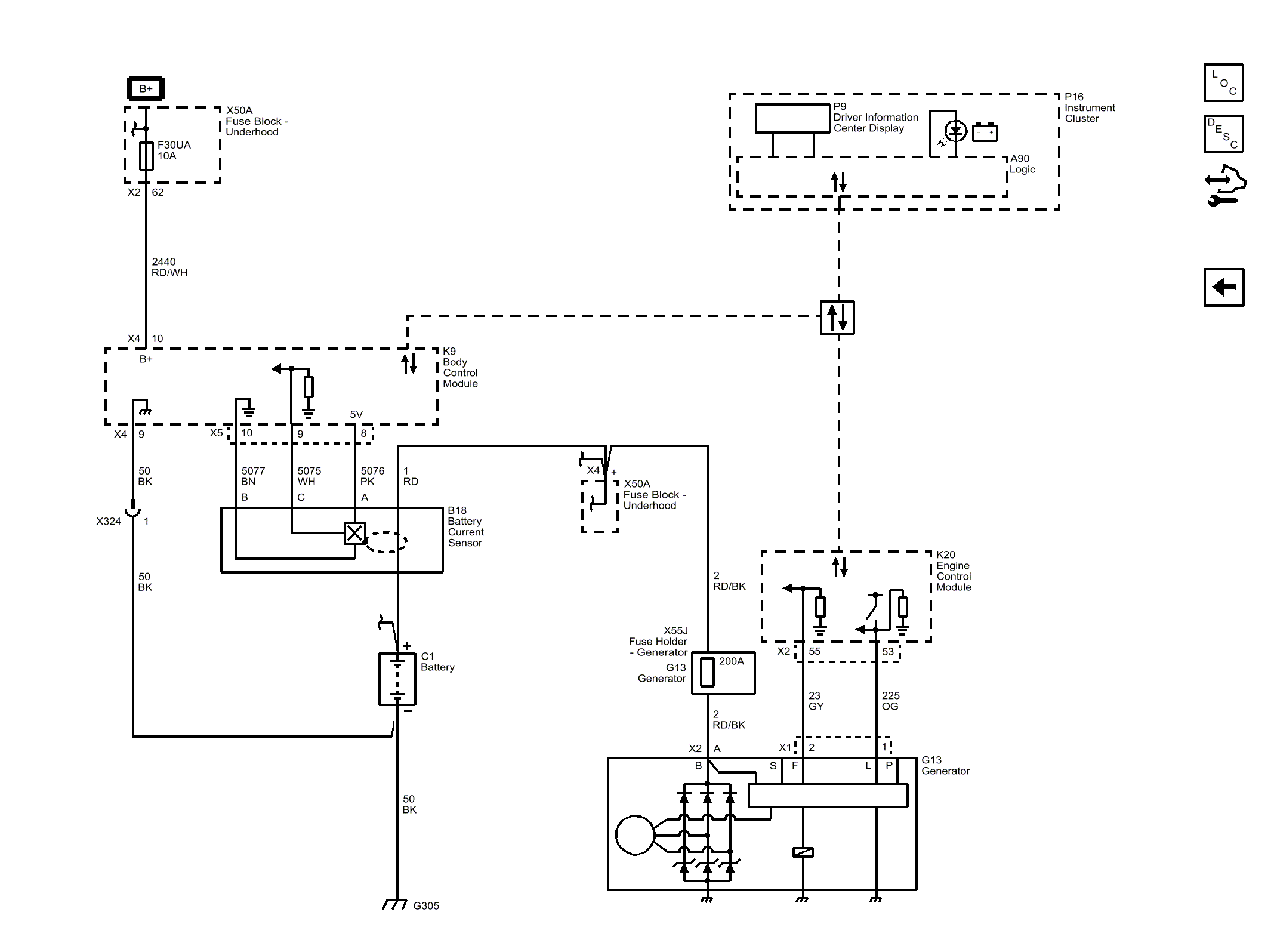

Fig 1: Charging

GM4405839

Courtesy of GENERAL MOTORS COMPANY
