S45A Liftgate Control Switch - Exterior

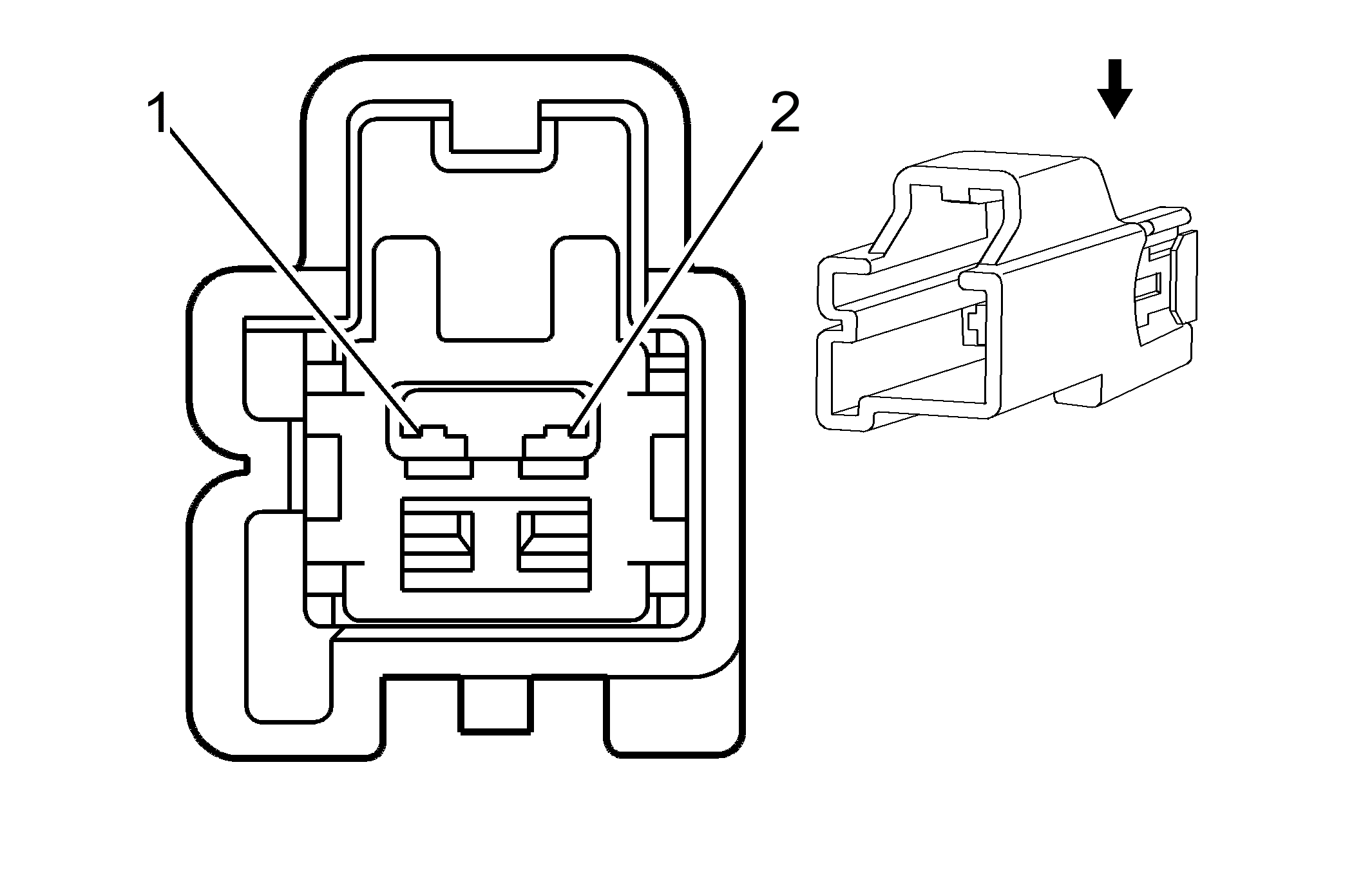

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-3 (GY) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 0.35 |
GY GY/BK |
5797 6113 |
Rear Closure Handle Switch Open Signal Rear Lift Gate Open/Close Switch Signal |
I I |
TB4+X88/Z88 TB5+X88/Z88 |
| 2 | 0.35 0.35 |
BK VT/WH |
650 5801 |
Ground Lift Gate Object Sensor Low Reference |
I I |
TB4+X88/Z88 TB5+X88/Z88 |
