Power, Ground, Serial Data, and Traction Control

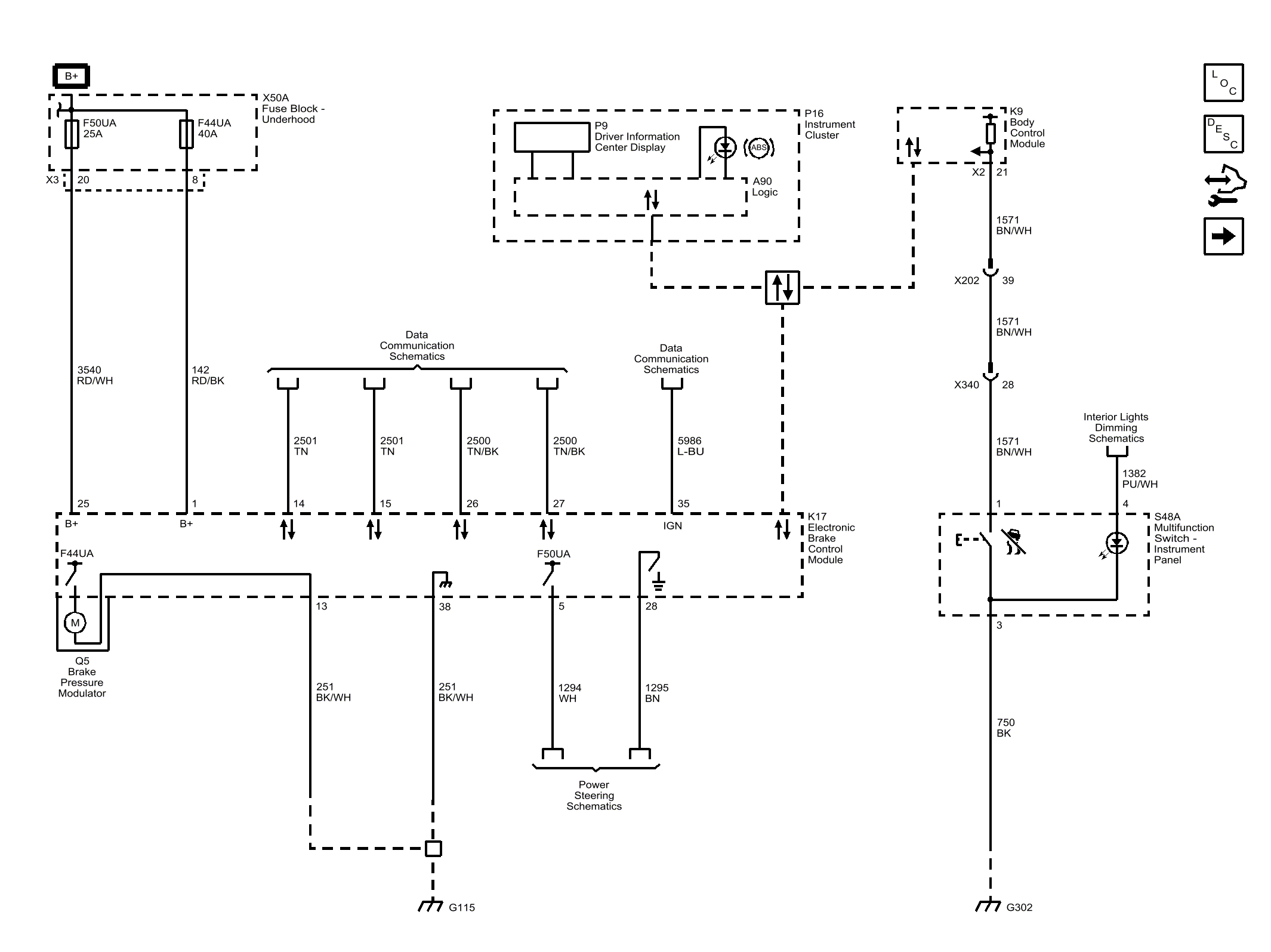

Fig 1: Power, Ground, Serial Data, and Traction Control

GM4405769

Courtesy of GENERAL MOTORS COMPANY
