Parking Brake Cable Equalizer Replacement

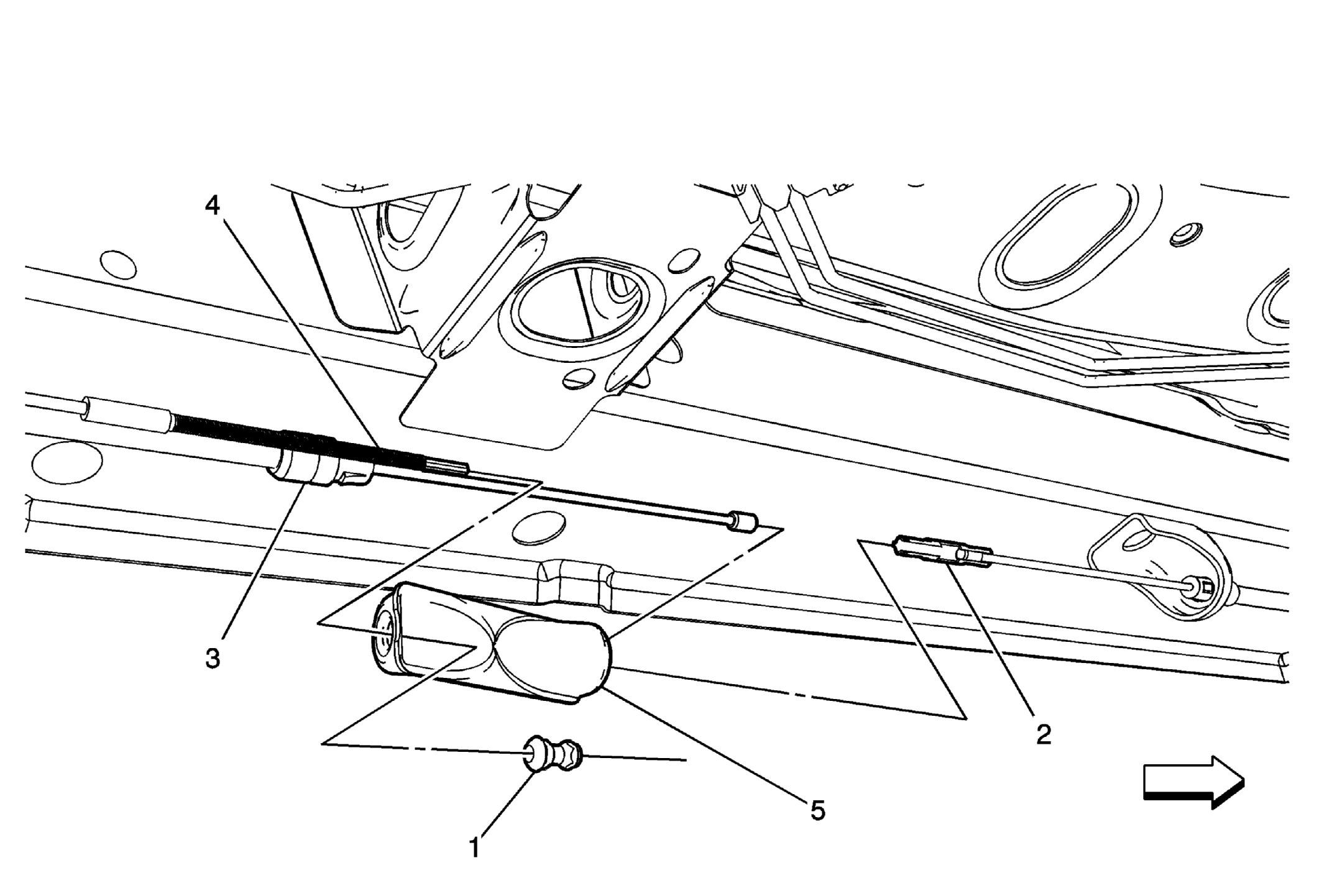

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Locknut |
| 2 | Front Park Brake Cable Connector |
| 3 | Right Park Brake Cable Procedure Using the J 37043 parking brake cable release tool, compress the locking tabs on the park brake cable conduit and remove the cable from the equalizer. Special Tools J 37043 Parking Brake Cable Release Tool |
| 4 | Left Park Brake Cable |
| 5 | Equalizer Procedure Adjust the park brake. Refer to Parking Brake Adjustment . |
