Home >> Chevrolet >> 2017 >> Traverse LS Base >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic Wiring Diagrams >> Immobilizer Wiring Schematics >> Immobilizer

Immobilizer Wiring Schematics: Immobilizer

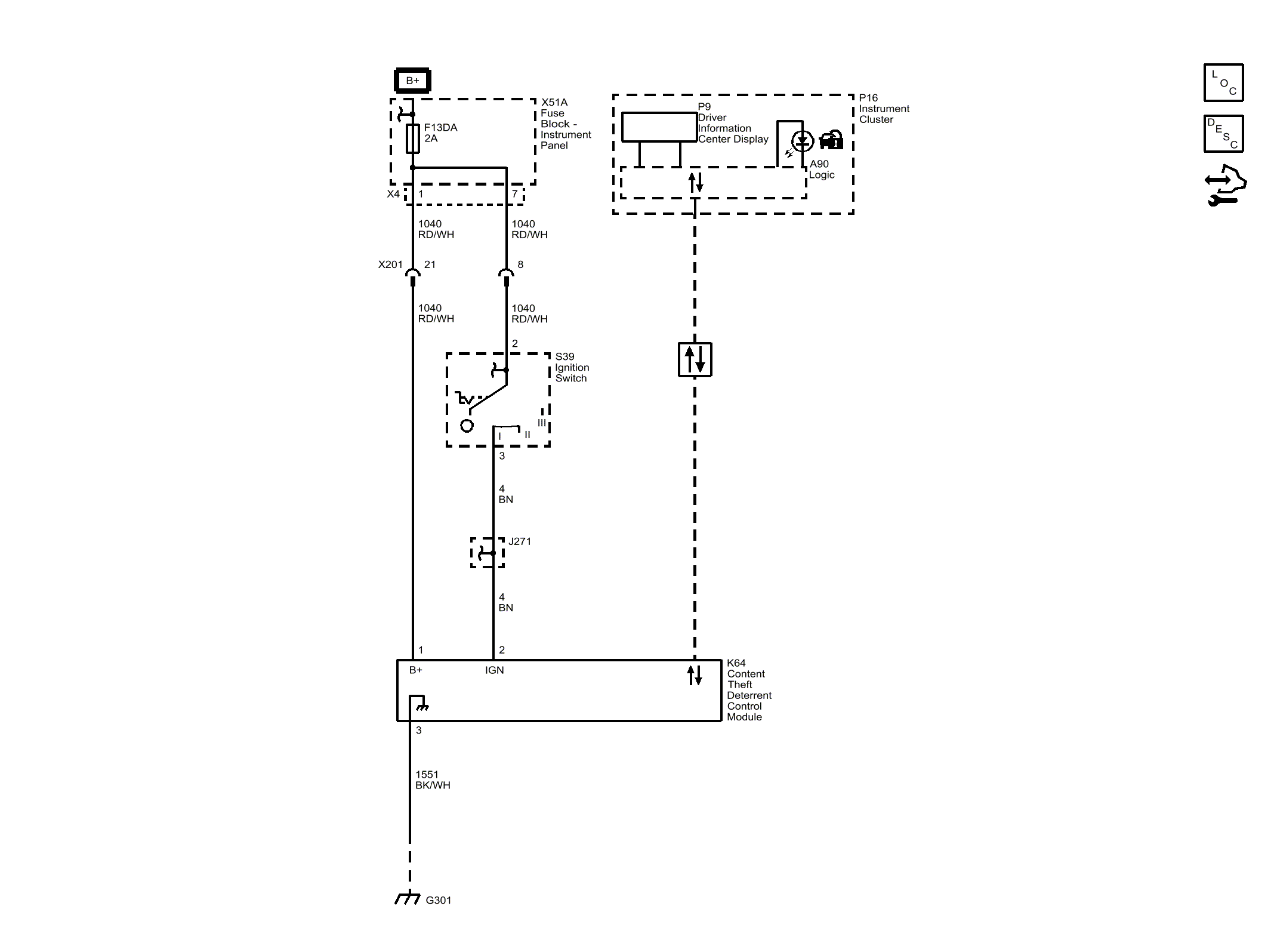

Fig 1: Immobilizer

GM4406417

Courtesy of GENERAL MOTORS COMPANY
