Liftgate Inside Pull Handle Replacement

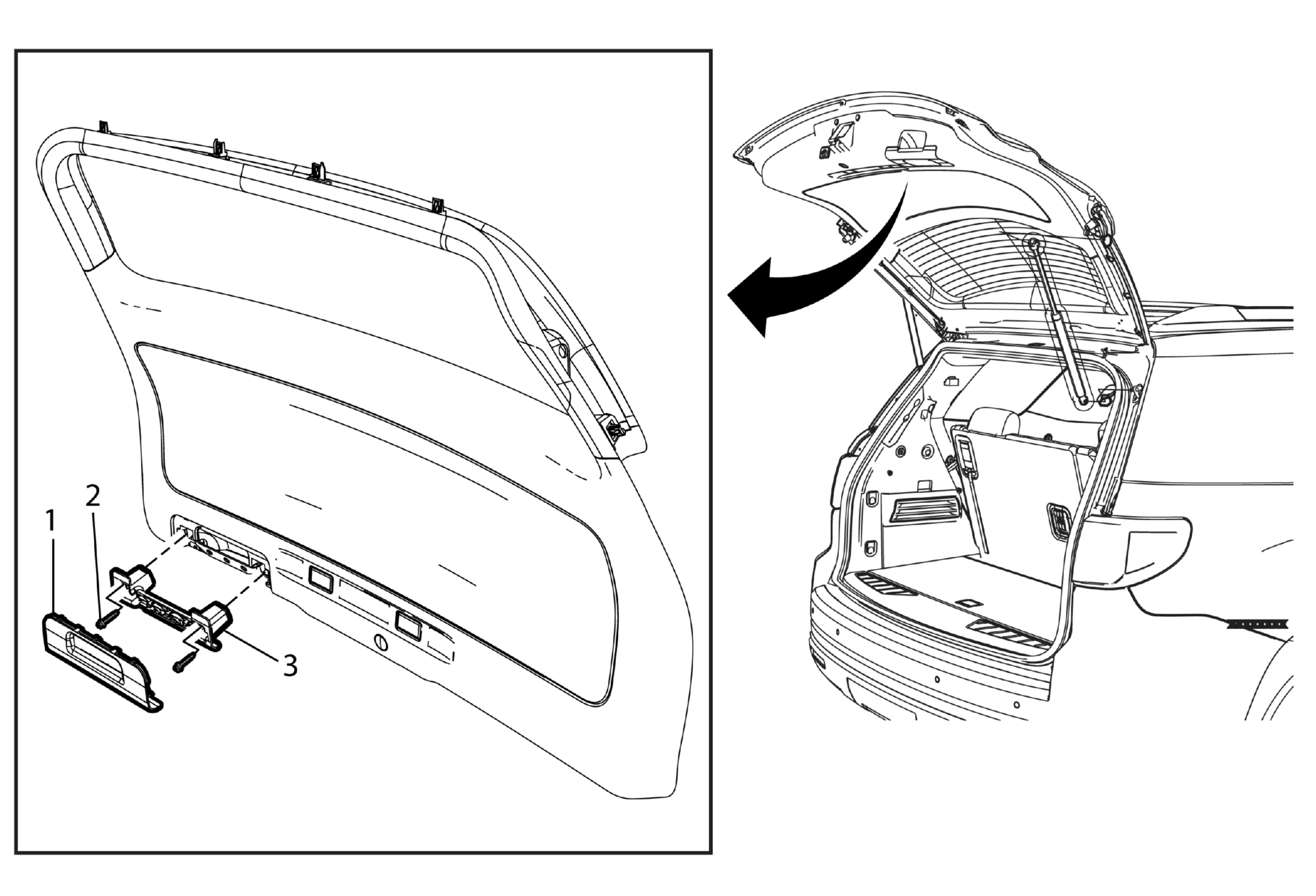

Fig 1: Liftgate Inside Pull Handle
GM3619211Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Inside Pull Handle Cover
2 Liftgate Inside Pull Handle Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Liftgate Inside Pull Handle
