Front Floor Console Armrest Slide Replacement

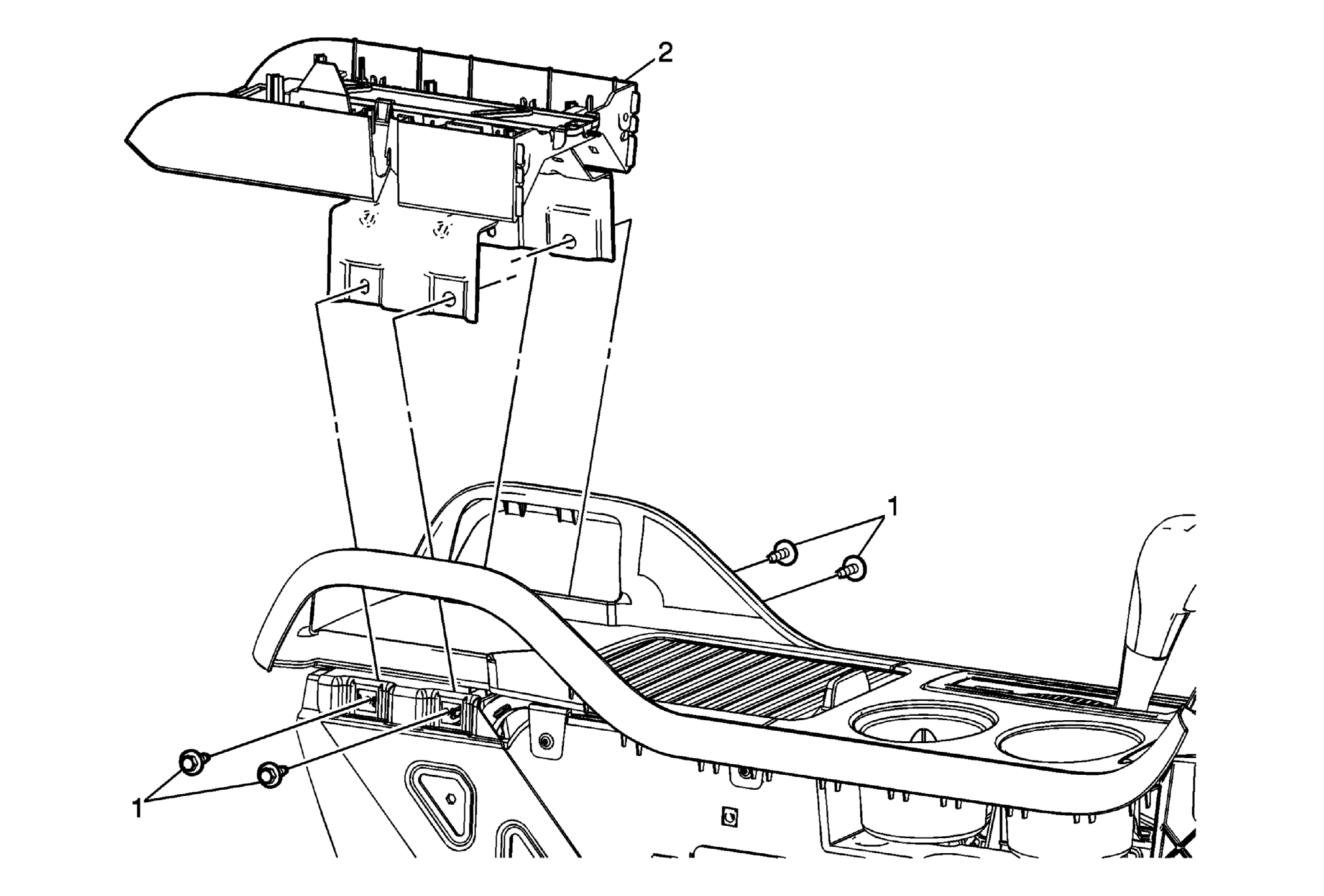

Fig 1: Front Floor Console Armrest With Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console filler. Refer to Front Floor Console Filler Replacement (Left Side) Front Floor Console Filler Replacement (Right Side) . Remove the front floor console extension accessory upper bezel. Refer to Front Floor Console Extension Accessory Upper Bezel Replacement .
1	Front Floor Console Armrest Slide Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Armrest Slide

Callout

Component Name

Preliminary Procedures

Front Floor Console Armrest Slide Bolt (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Floor Console Armrest Slide
