Rear Side Door Latch Replacement

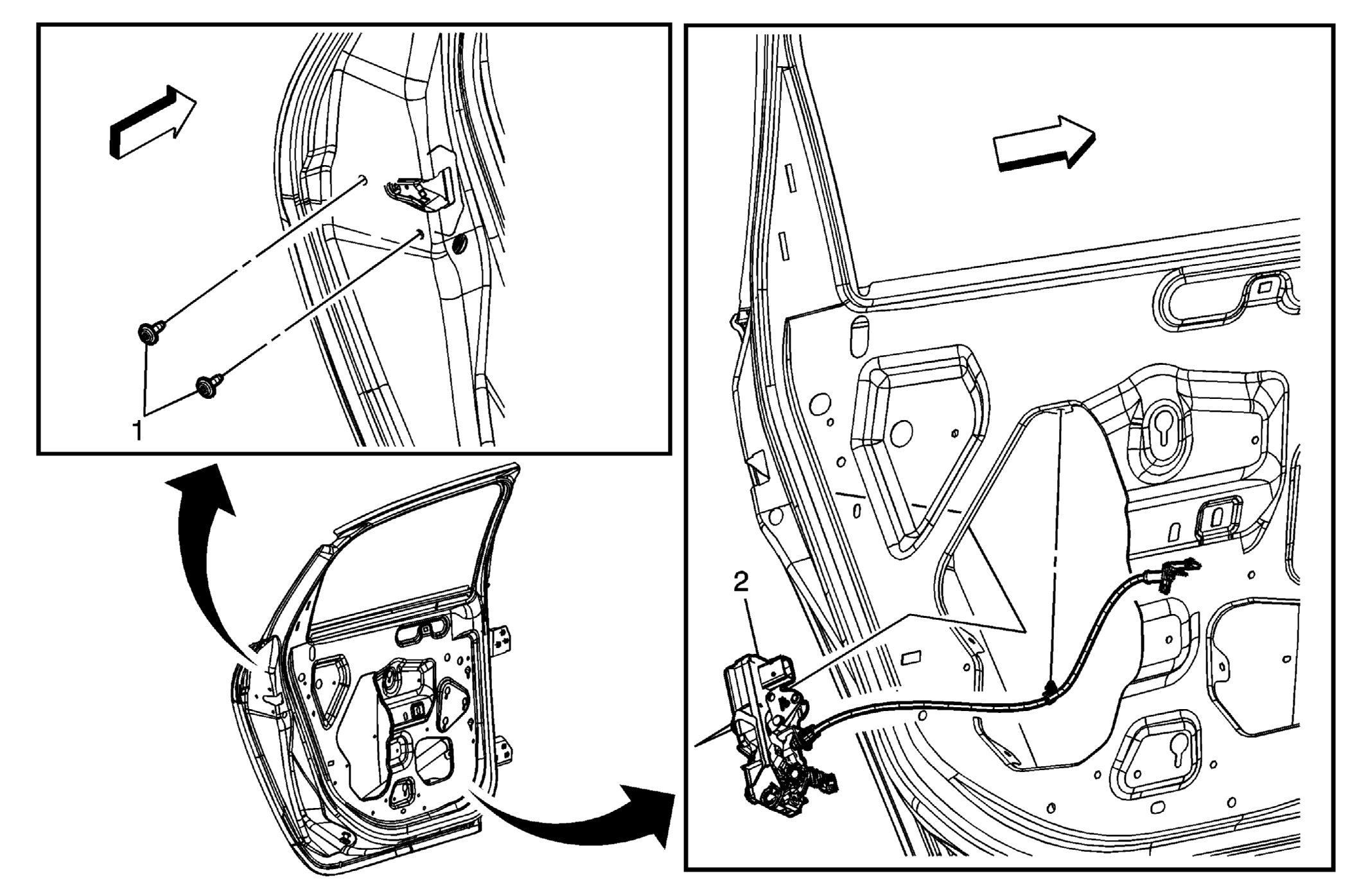

Fig 1: Rear Side Door Latch
GM1843685Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave)Rear Side Door Trim Panel Replacement (Acadia or Traverse) .
  2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
  3. Rear the rear door energy absorber pad. Rear Door Energy Absorber Pad Replacement .
1 Rear Side Door Lock Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Remove the rear lower section of the run channel only.
Tighten
10 N.m (89 lb in)
2 Rear Side Door Lock Assembly

Procedure

  1. Release the inside handle cable retainers before removing the door lock.
  2. Disconnect the door lock electrical connector.
  3. Transfer the lock rods.
