Front Side Door Locking Rod Knob Replacement

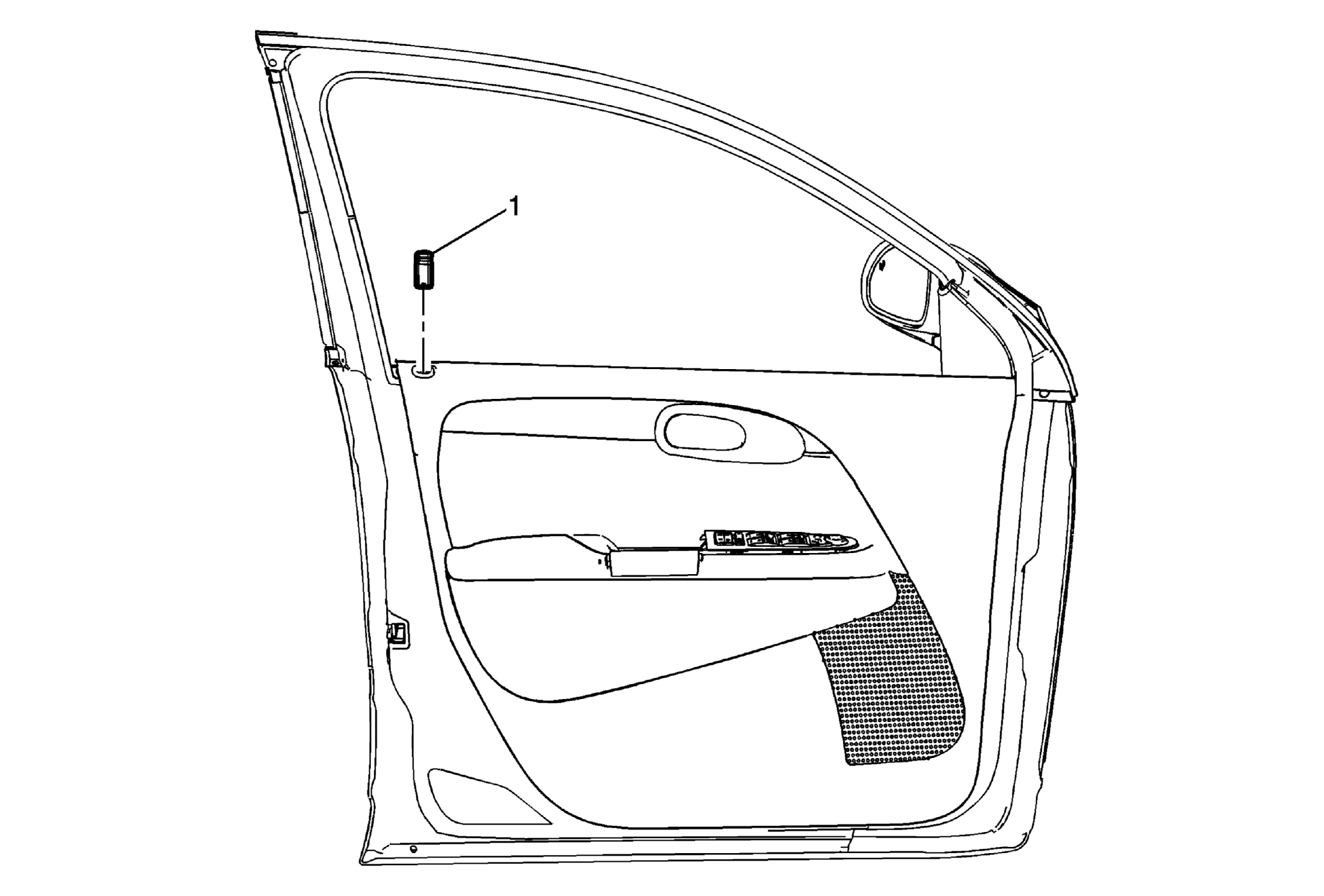

Fig 1: Front Side Door Locking Rod Knob
GM3460745Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Locking Rod Knob

Procedure

  1. Ensure the locking rod is in the unlocked position.
  2. Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward.
  3. When re-installing, push the knob down until the detent tab touches the locking rod opening cover.
  4. Push the detent tab into the lock knob to locking rod.
