Door Lock and Side Window Switch Replacement - Driver Side

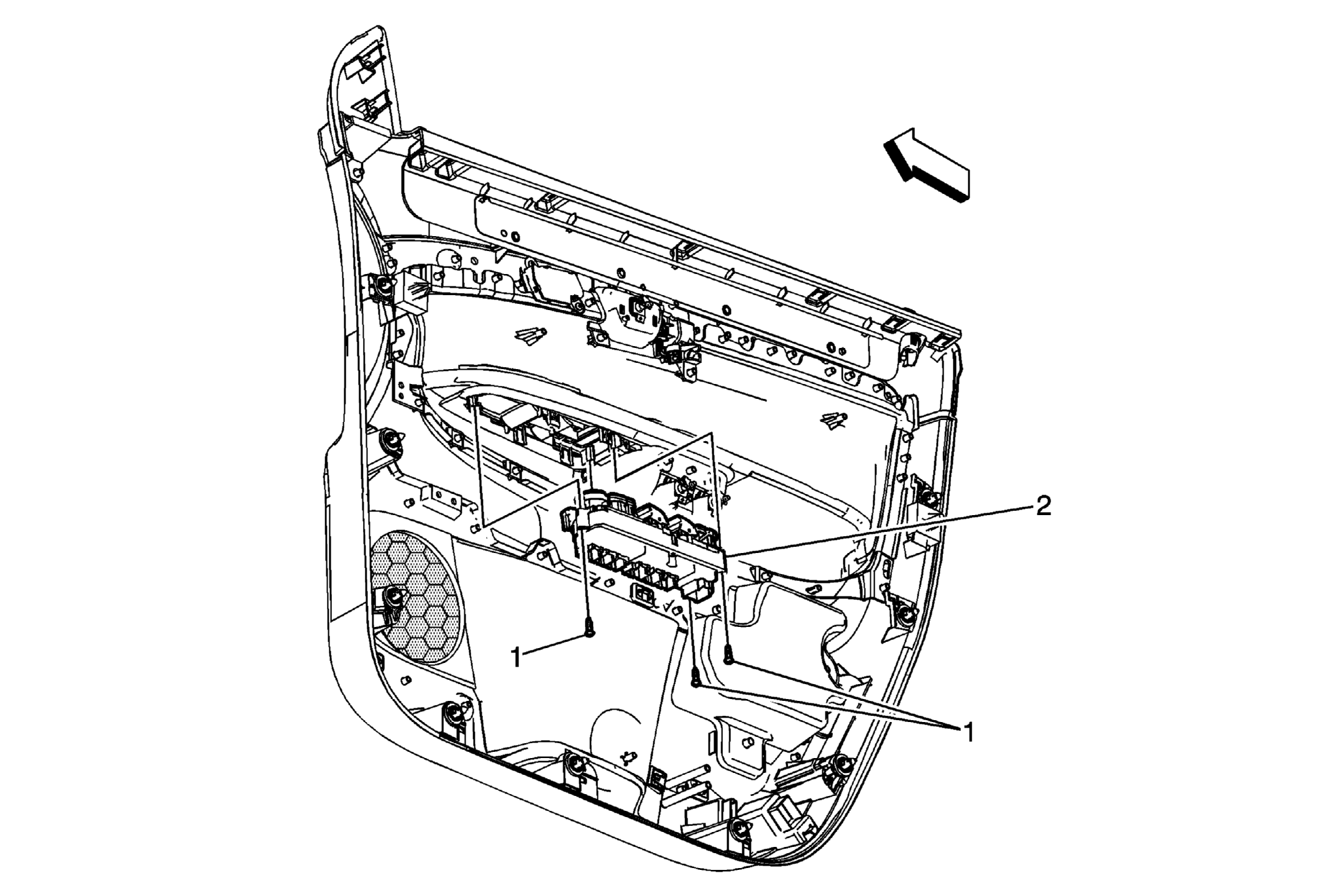

Fig 1: Door Lock & Side Window Switch - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver side door trim panel from the vehicle and place on a flat surface. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) .
1	Front Side Door Lock and Side Window Switch Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Front Side Door Lock and Side Window Switch Assembly Procedure Disconnect the electrical connectors from the switch assembly. Release the switch from the underside of the door trim panel by depressing the tabs along each side of the switch. Refer to Control Module References for programming and set-up procedures, if required.

Callout

Component Name

Front Side Door Lock and Side Window Switch Screw (Qty: 3)

CAUTION:

Tighten
3 N.m (27 lb in)

Front Side Door Lock and Side Window Switch Assembly

Procedure

Disconnect the electrical connectors from the switch assembly.
Release the switch from the underside of the door trim panel by depressing the tabs along each side of the switch.
Refer to Control Module References for programming and set-up procedures, if required.
