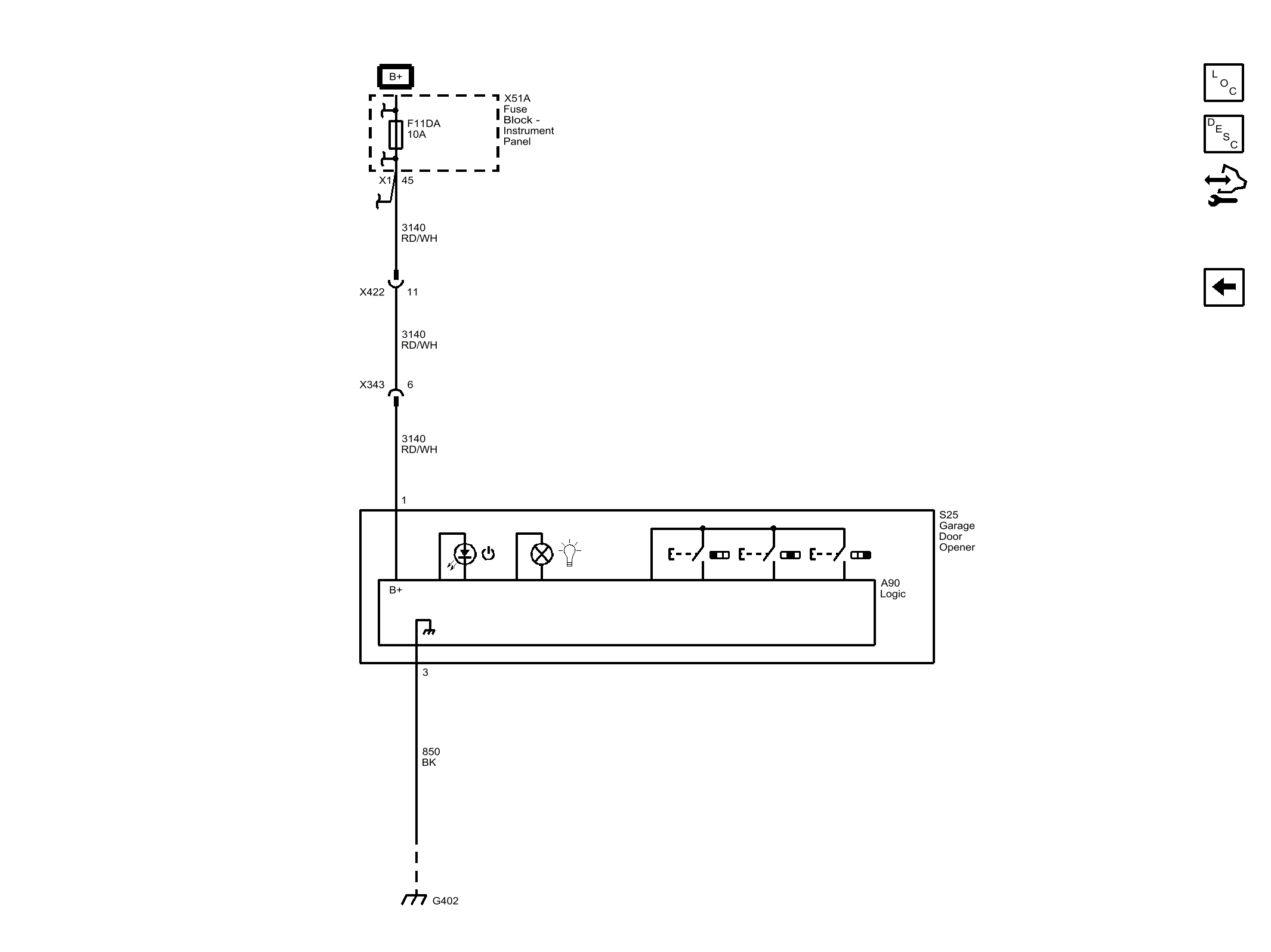

Home >> Chevrolet >> 2017 >> Traverse LS Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Garage Door Opener (UG1)
