Removal Procedure

    Fig 1: Air Inlet Grille Panel
    GM1864983Courtesy of GENERAL MOTORS COMPANY
  1. Remove Air Inlet Grille Panel - Air Inlet Grille Panel Replacement
  2. Disconnect the electrical connector.

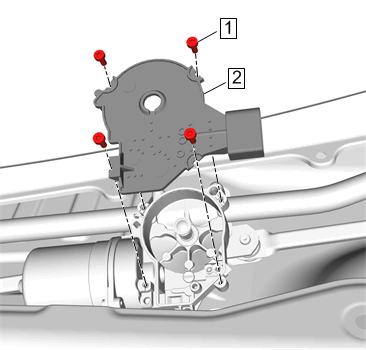

    3. Fig 2: Windshield Wiper Motor Cover Fastener
    GM4292087Courtesy of GENERAL MOTORS COMPANY
  3. Remove Windshield Wiper Motor Cover Fastener
  4. Remove Windshield Wiper Motor Cover
