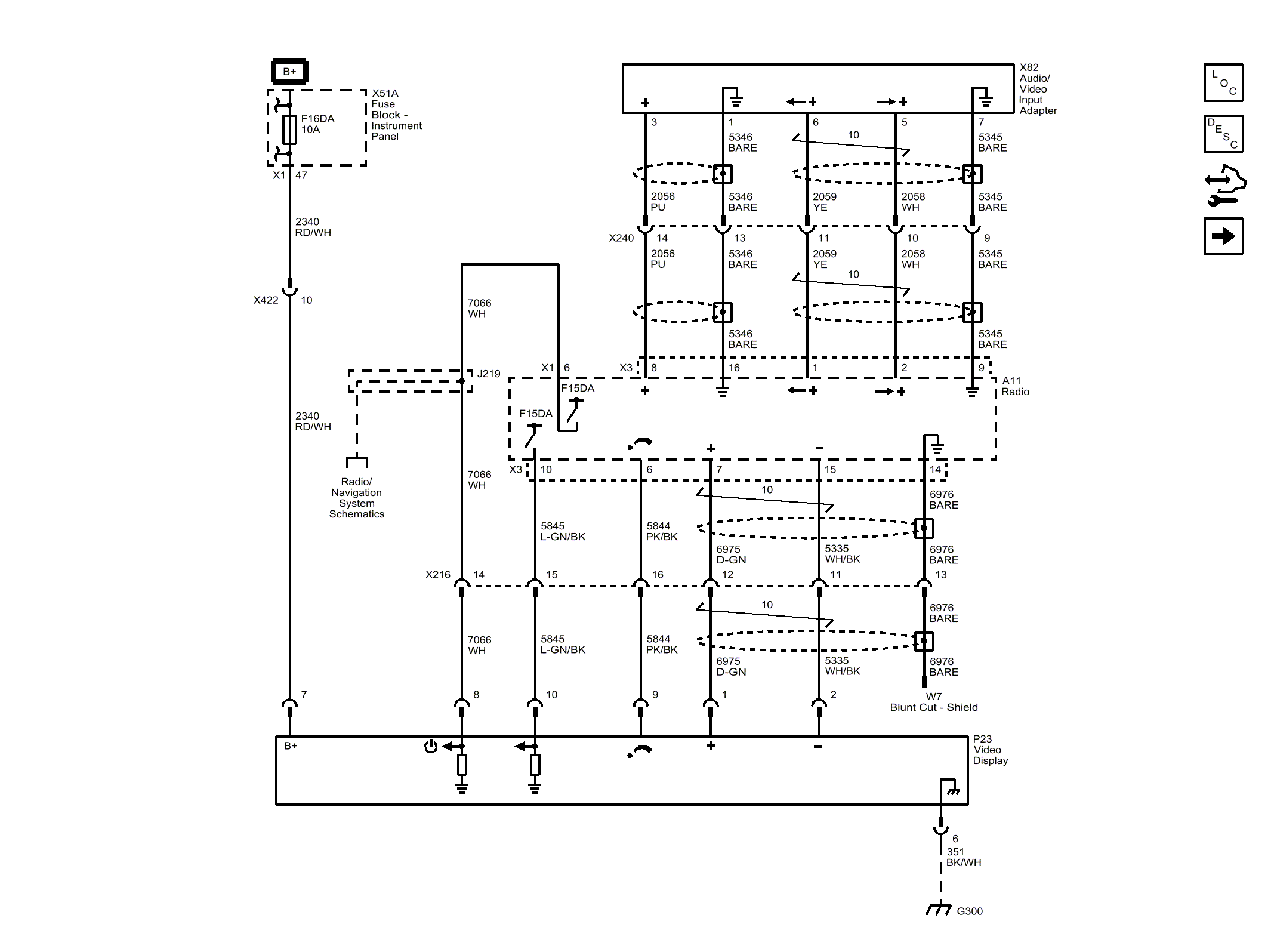

Home >> Chevrolet >> 2017 >> Traverse LS Base >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System, And Navigation System >> Schematic Wiring Diagrams >> Video System Wiring Schematics >> U42
