Home >> Chevrolet >> 2017 >> Traverse LS Base >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Schematic Wiring Diagrams >> Cruise Control Wiring Schematics >> Cruise Control

Cruise Control

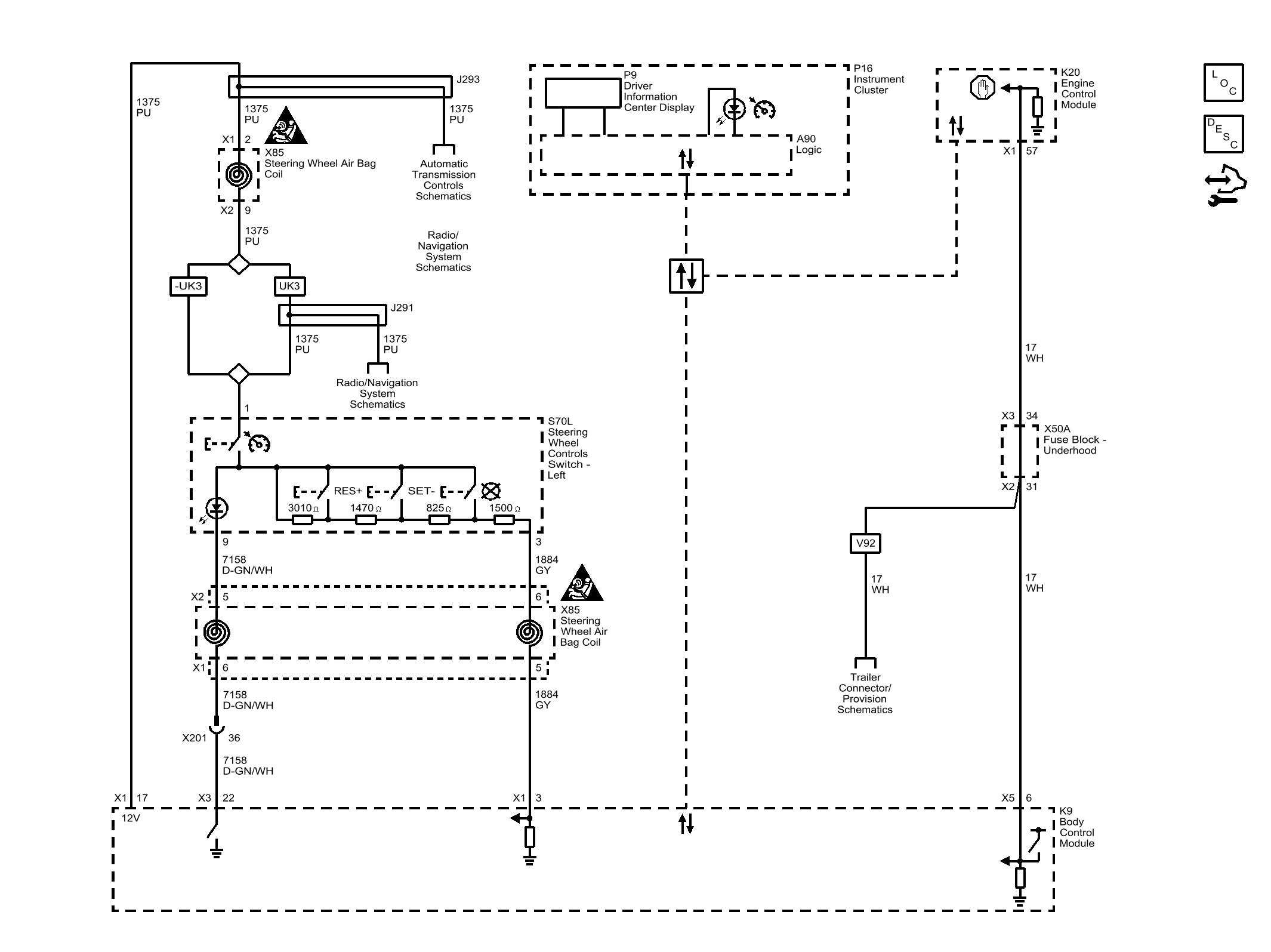

Fig 1: Cruise Control

GM4405840

Courtesy of GENERAL MOTORS COMPANY
