Installation Procedure

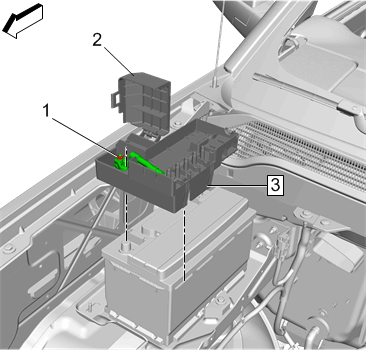

    Fig 1: Battery Positive Post Cover, Clamp Nut And Battery Distribution Engine Compartment Fuse Block
    GM4569241Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Distribution Engine Compartment Fuse Block (3)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten Battery Positive Post Clamp Nut (1) to 5 N.m (44 lb in)
  3. Close Battery Positive Post Cover (2)

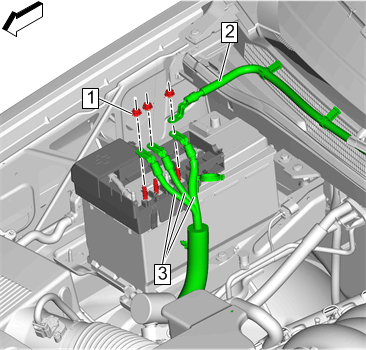

    4. Fig 2: Battery Distribution Engine Compartment Fuse Block Nuts, Battery Positive Cable And Generator Wiring Harnesses
    GM4569938Courtesy of GENERAL MOTORS COMPANY
  4. Install Generator Battery Control Wiring Harnesses (3) (Qty: 3)
  5. Install Battery Positive Cable (2)
  6. Install and tighten Battery Distribution Engine Compartment Fuse Block Nuts (1) (Qty: 3) to 15 N.m (11 lb ft)

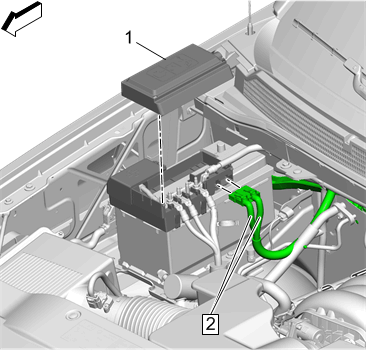

    7. Fig 3: Fuse Block Cover And Electrical Connectors
    GM4569937Courtesy of GENERAL MOTORS COMPANY
  7. Connect Electrical Connectors (2) (Qty: 2)
  8. Install Fuse Block Cover (1)
  9. Install Front Fender Rear Upper Brace. Refer to Front Fender Rear Upper Brace Replacement
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery)
