Communication Center Call Switch Replacement

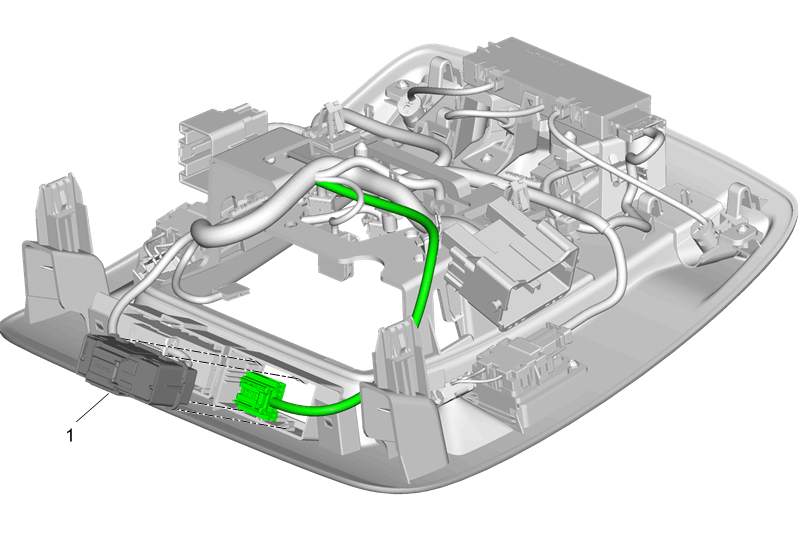

Fig 1: Communication Center Call Switch
GM4807187Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Communication Center Call Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
