K182 Parking Assist Control Module X1
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

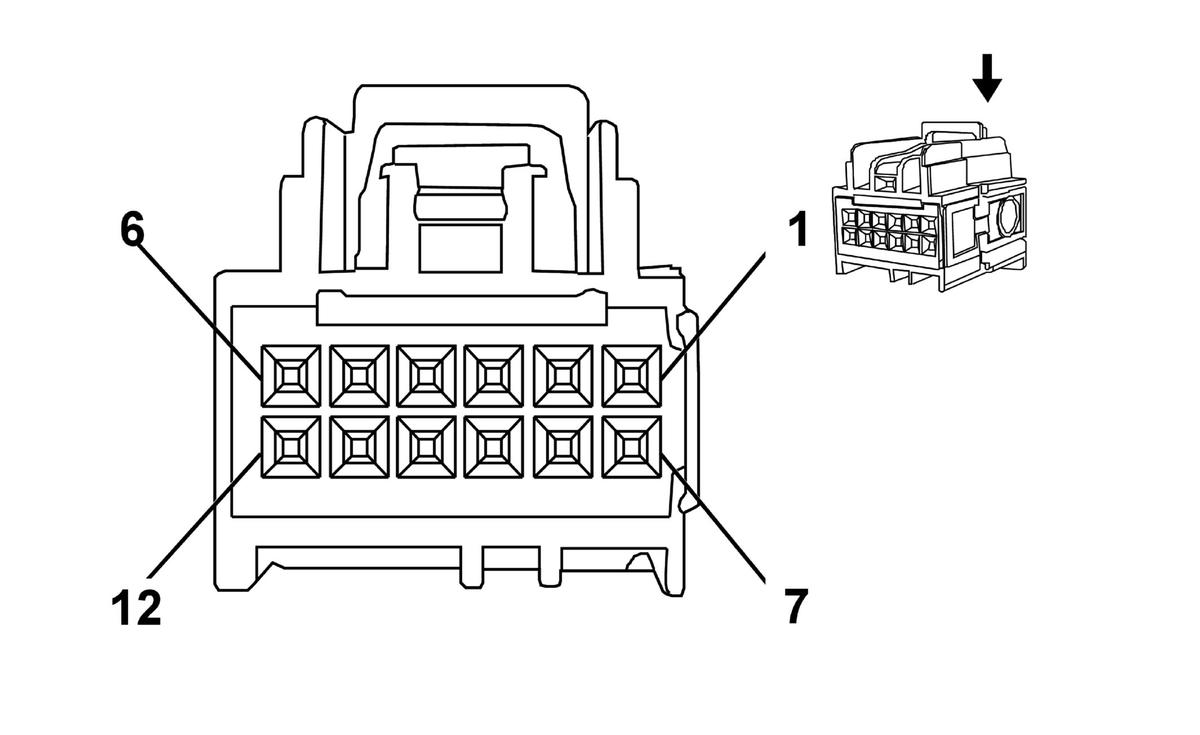

Connector Part Information
- Harness Type: Body
- OEM Connector: 94552-9012
- Service Connector: 13576636
- Description: 12-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13588065 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/GN |
3840 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
GN/BN |
5852 |
Rear Park Assist LED Disable Signal |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 7 |
0.75 |
BK |
2350 |
Ground |
I |
- |
| 8 |
0.5 |
GY/GN |
2555 |
Rear Park Assist Disable Signal |
I |
- |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
