Throttle Body Assembly Replacement (L5Q)

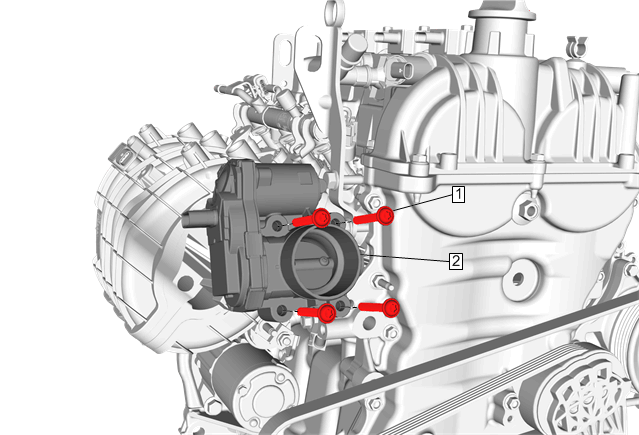

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (L5Q) . Disconnect the throttle body connector.
1	Throttle Body Retaining Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove the throttle body retaining bolts. Tighten 8.5 N.m (75 lb in)
2	Throttle Body Assembly

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (L5Q) .
Disconnect the throttle body connector.

Throttle Body Retaining Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Procedure
Remove the throttle body retaining bolts.
Tighten
8.5 N.m (75 lb in)

Throttle Body Assembly
