Repair Instructions
>>
Air Cleaner Housing Replacement
Air Cleaner Housing Replacement

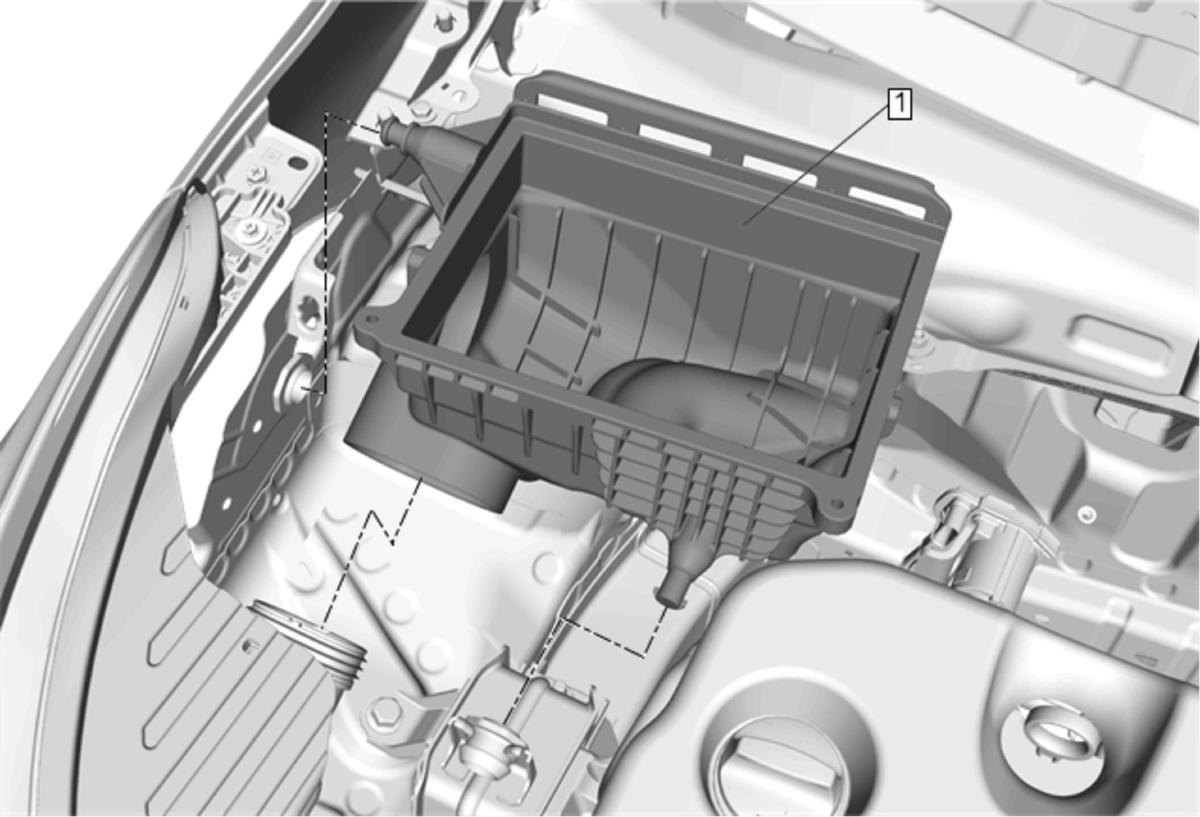

Fig 1: Air Cleaner Housing
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Air Cleaner Element Replacement
1
Air Cleaner Housing
