Ignition and Start Switch Replacement

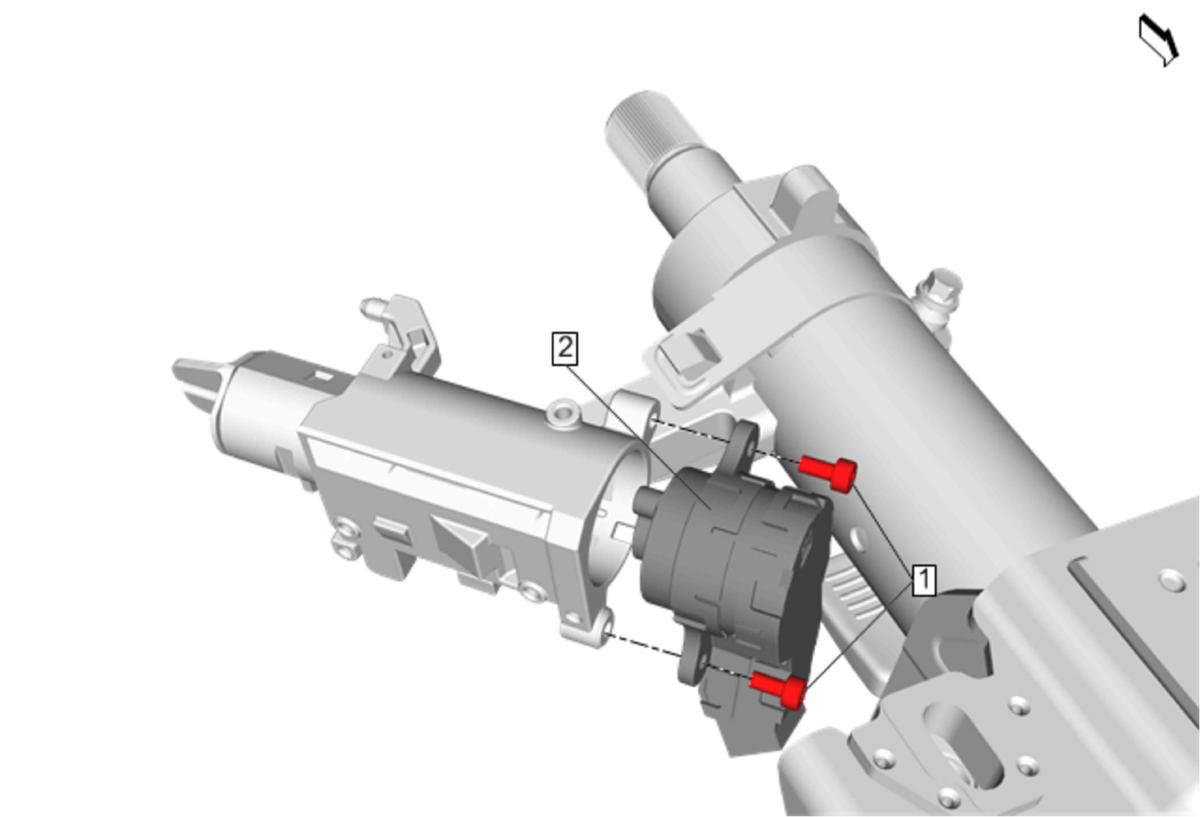

Fig 1: Ignition And Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Remove the steering column lower trim cover. Steering Column Lower Trim Cover Replacement Remove the ignition lock cylinder theft deterrent sensor cover. Ignition Lock Cylinder Theft Deterrent Sensor Cover Replacement
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Ignition and Start Switch Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Ignition and Start Switch Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Ignition and Start Switch
Procedure
Disconnect the electrical connector.
