Crankshaft Position Sensor Replacement (L5Q)

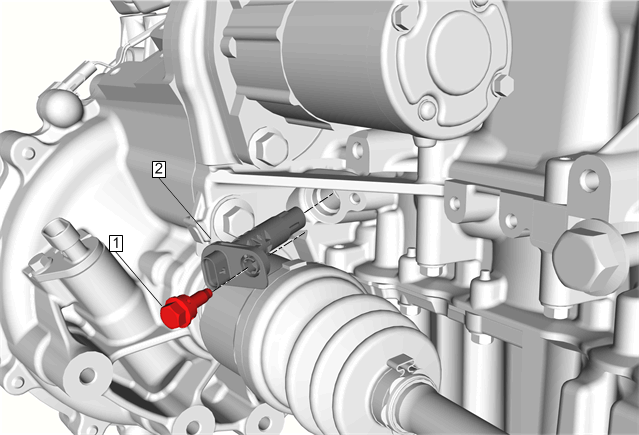

Fig 1: Crankshaft Position Sensor
GM4035014Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Disconnect the crankshaft position sensor connector.
1 Crankshaft Position Sensor Bolt
CAUTION: Refer to Fastener Caution .

Procedure
Remove the crankshaft position sensor bolt.
Tighten
10 N.m (89 lb in)
2 Crankshaft Position Sensor
