Manifold Absolute Pressure Sensor Replacement (L5Q)

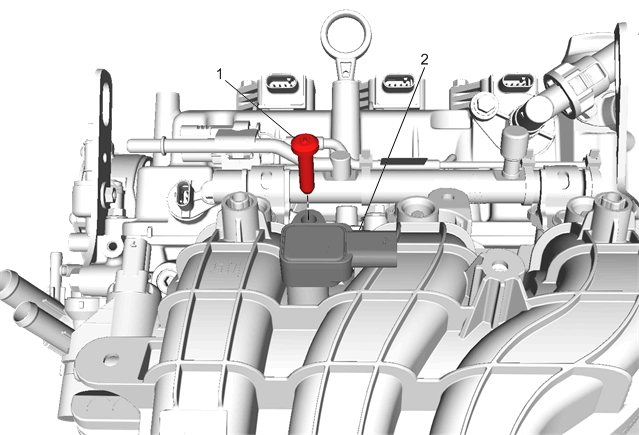

Fig 1: Manifold Absolute Pressure Sensor
GM4035536Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Disconnect the manifold absolute pressure sensor connector.
1 Manifold Absolute Pressure Sensor Bolt
CAUTION: Refer to Fastener Caution .

Procedure
Remove the manifold absolute pressure sensor bolt.
Tighten
5 N.m (44 lb in)
2 Manifold Absolute Pressure Sensor
