Intake Air Duct Resonator Replacement

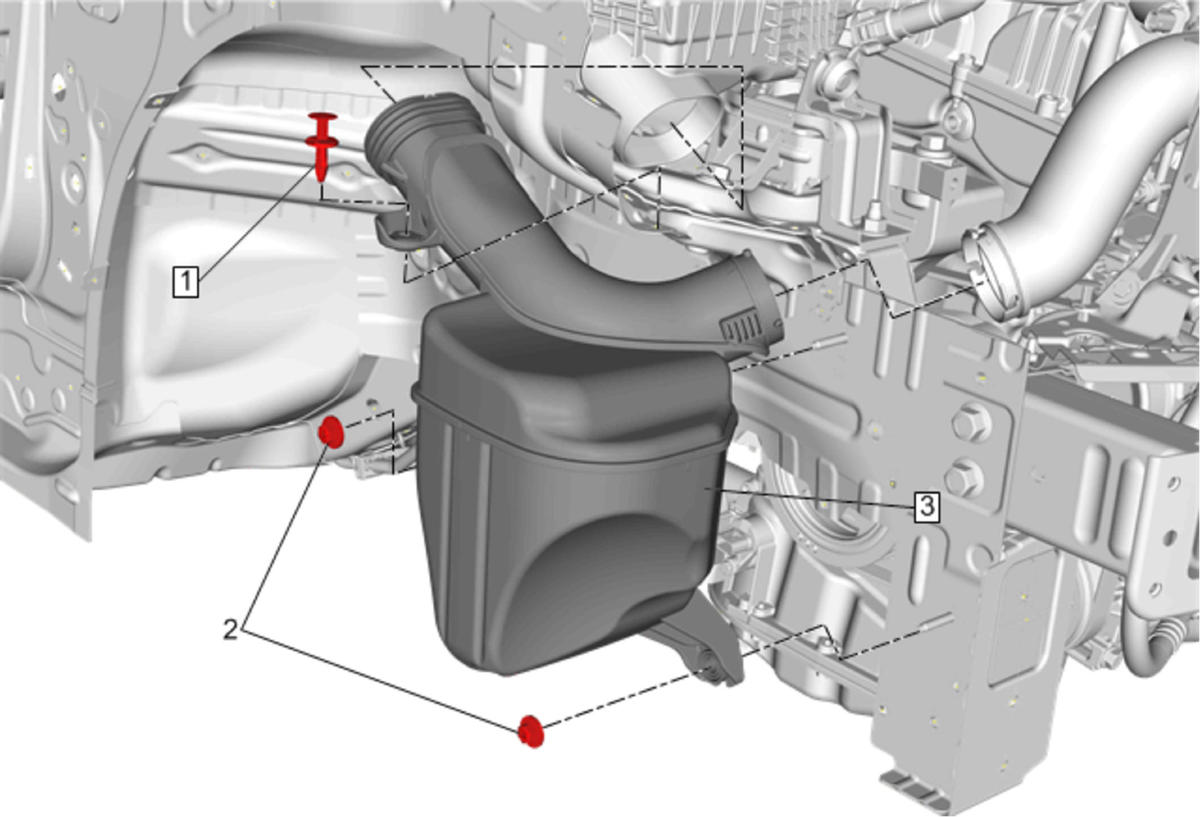

Fig 1: Intake Air Duct Resonator
GM4013599Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Remove the front compartment splash shield. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
  3. Remove the front wheel house liner. Refer to Front Wheelhouse Liner Replacement .
1 Air Cleaner Outlet Resonator Retainer
2 Air Cleaner Outlet Resonator Nut (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)
3 Air Cleaner Outlet Resonator
