Home >> Chevrolet >> 2017 >> Sonic Premier, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls/Fuel - 1.4L (LUV) - Schematic Wiring Diagrams - Engine Controls Schematics >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Module Power, Ground, Serial Data, and MIL

Module Power, Ground, Serial Data, and MIL

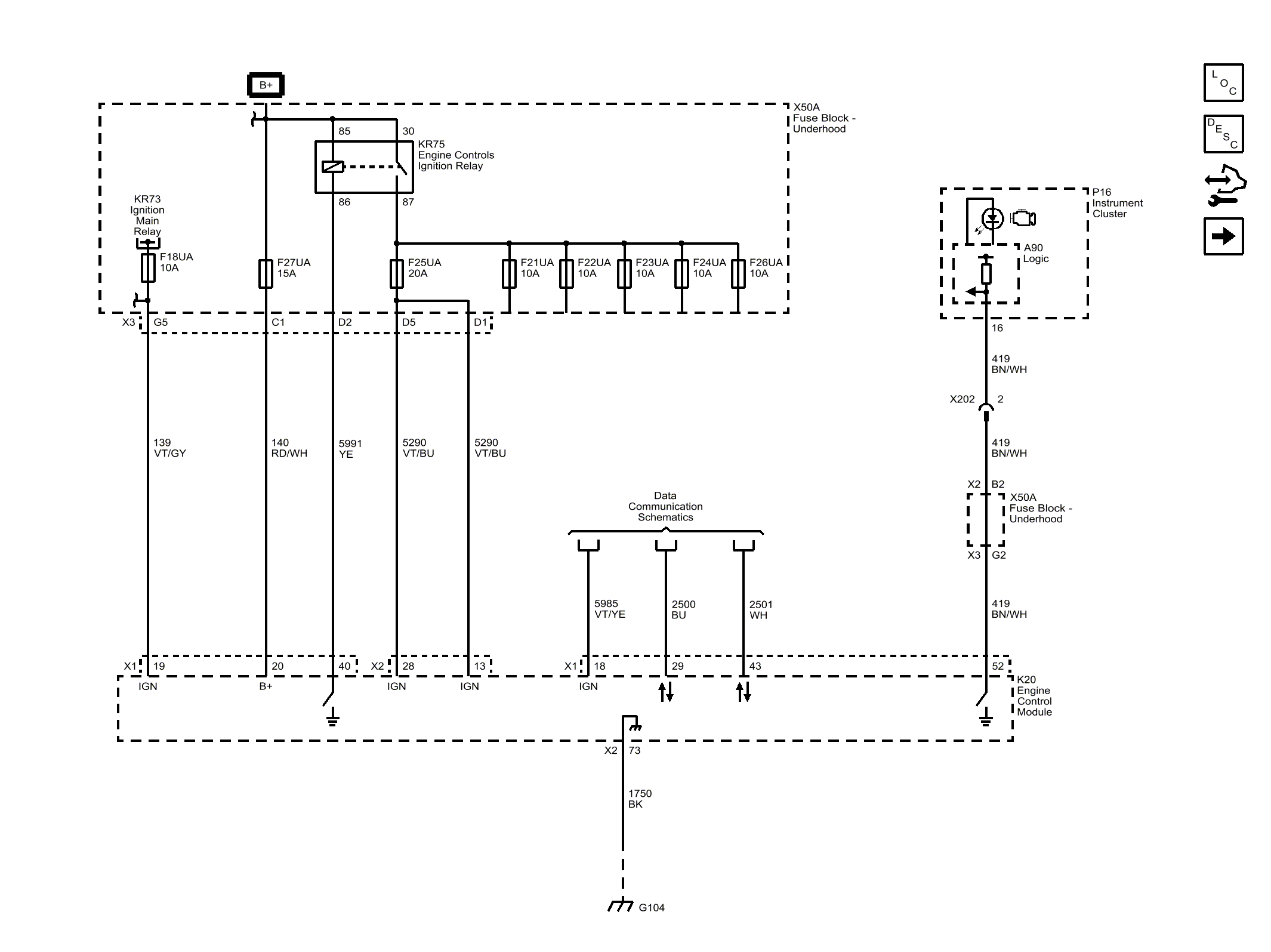

Fig 1: Module Power, Ground, Serial Data, and MIL

GM4427184

Courtesy of GENERAL MOTORS COMPANY
