Sonic Premier, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
Power, Ground, and Low Speed GMLAN
Power, Ground, and Low Speed GMLAN

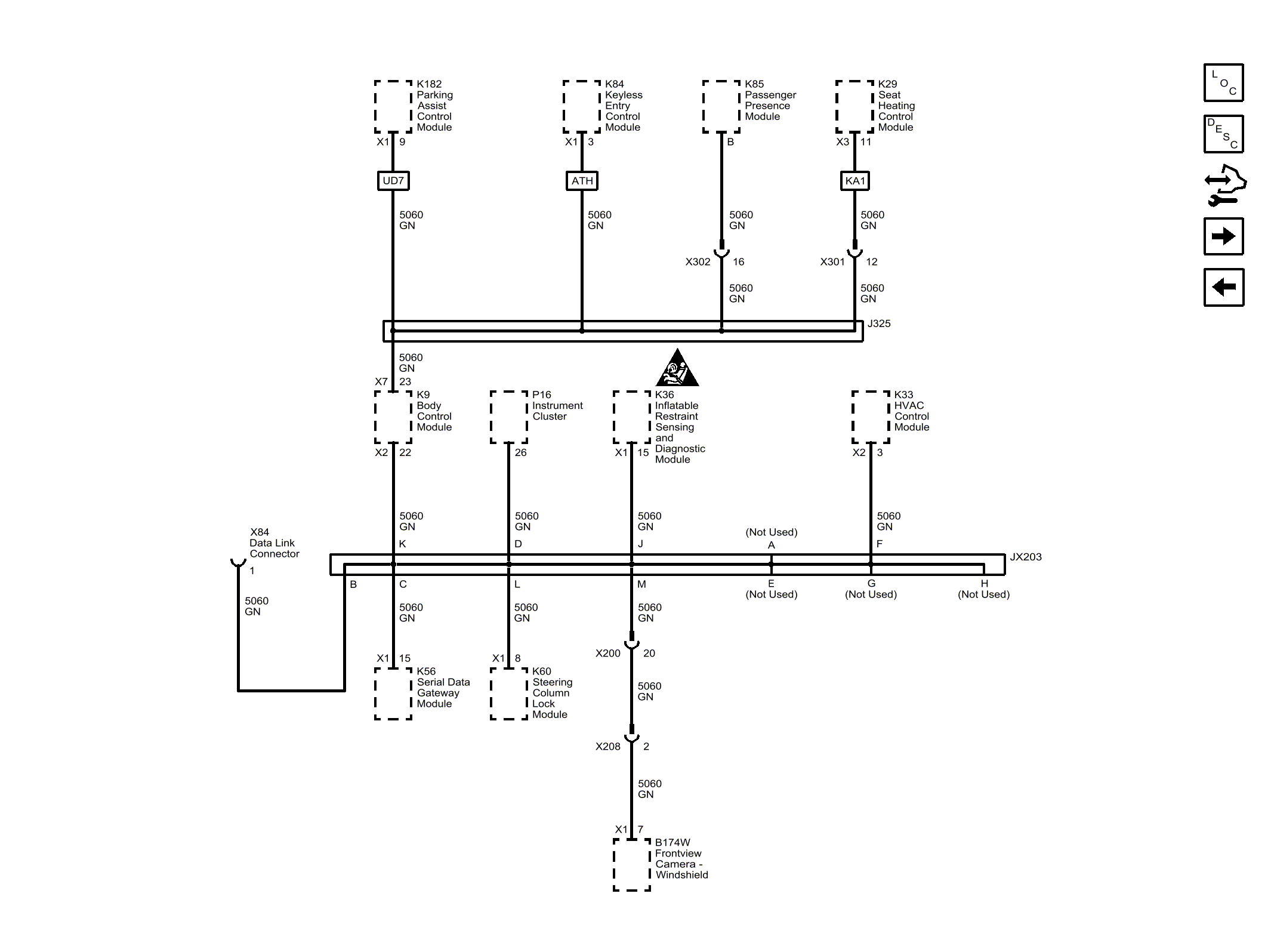

Fig 1: Power, Ground, and Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
