Chassis High Speed GMLAN (FX3)

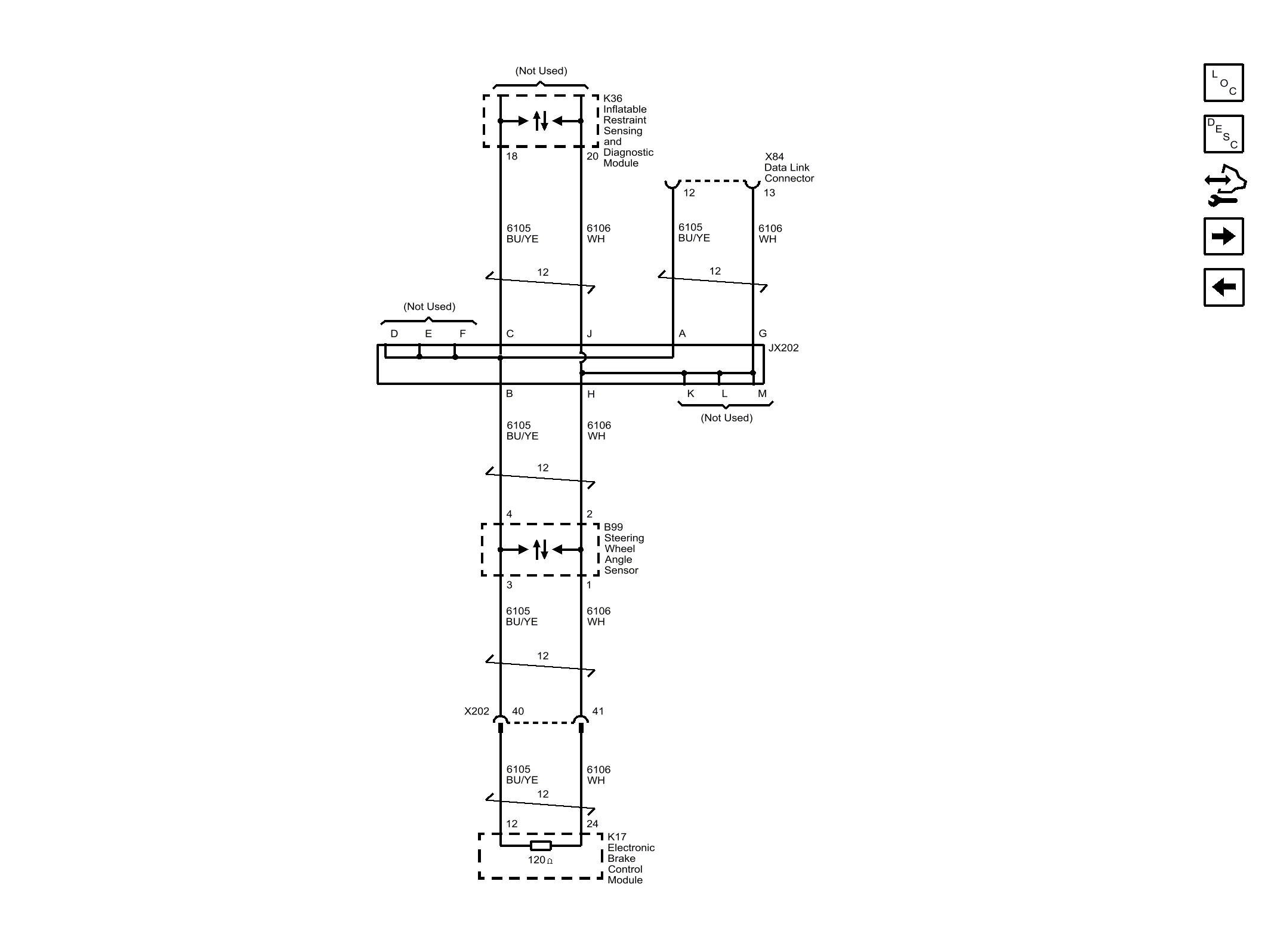

Fig 1: Chassis High Speed GMLAN Wiring Schematic (FX3)

GM4427237

Courtesy of GENERAL MOTORS COMPANY
